SKU: MST2.3/4-RHP

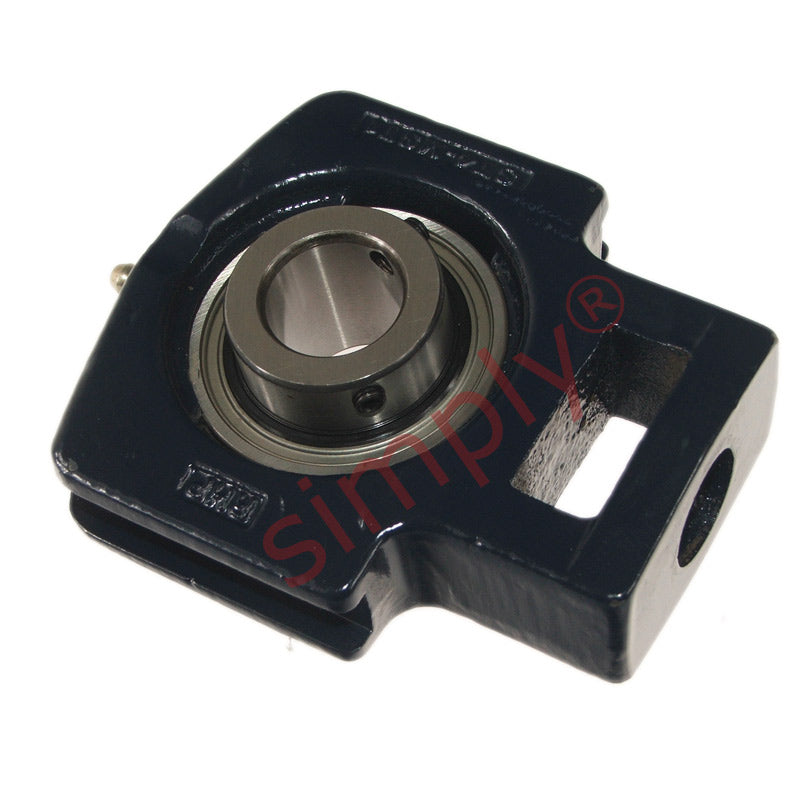

RHP MST2-3/4 Cast Iron Take Up Unit and 2-3/4 inch Bore Insert

RHP MST2-3/4 Cast Iron Take Up Unit and 2-3/4 inch Bore Insert
Regular price $657.45 ex VAT
Regular price Sale price $657.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $312.16
20+ $294.62
30+ $291.11
40+ $287.61
50+ $284.10
75+ $280.59
100+ $263.05
200+ $259.55
250+ $256.04
500+ $252.53
1000+ $245.52
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-3/4 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B 3.062 inch
B5 - inch
s 1.314 inch
d1 3.622 inch
d4 - inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
