SKU: MST100-RHP

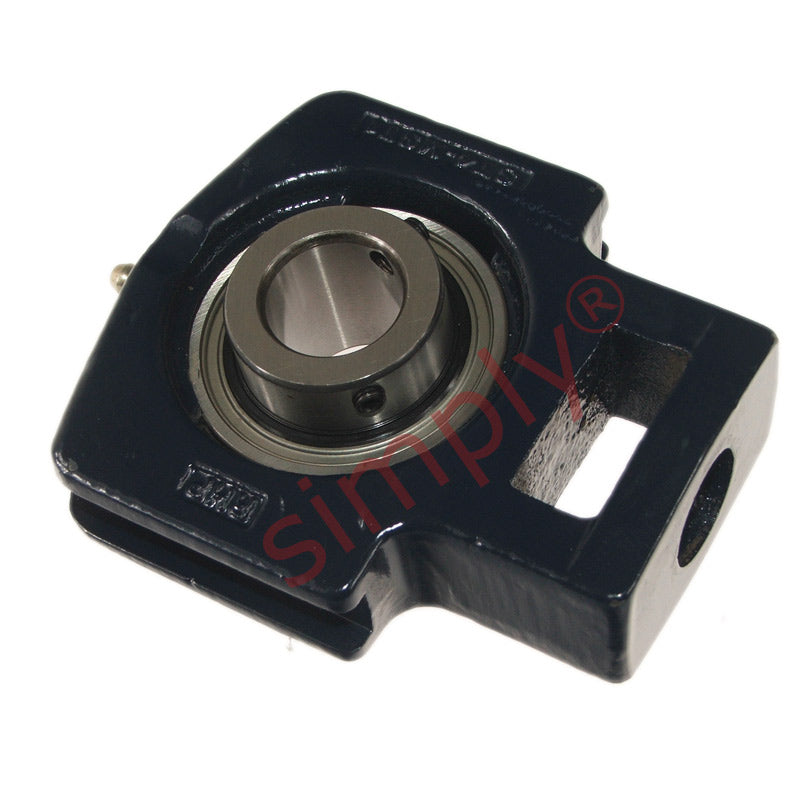

RHP MST100 Cast Iron Take Up Unit and 100mm Bore Insert

RHP MST100 Cast Iron Take Up Unit and 100mm Bore Insert
Regular price $1,842.25 ex VAT
Regular price Sale price $1,842.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $873.59
20+ $824.52
30+ $814.70
40+ $804.88
50+ $795.07
75+ $785.25
100+ $736.17
200+ $726.36
250+ $716.54
500+ $706.73
1000+ $687.10
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

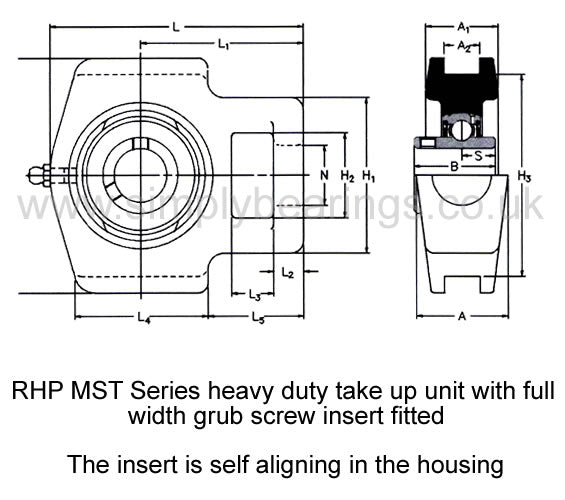

Technical
Bore 100mm
L 317.5mm
L1 190.5mm
L2 32mm
L3 38mm
L4 175mm
L5 103mm
H 260.5mm
H1 152.5mm
H2 85.5mm
H3 235mm
N 54.5mm
A 98.5mm
A1 82.5mm
A2 55.55mm
B 117.48mm
B5 -mm
s 49.27mm
d1 130.43mm
d4 -mm
Dynamic load 157000 N
Static load 122000 N
Rec max speed 1600 rpm
Weight 22.2 kg
Insert <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4mm x 28 TPI
