SKU: MSF1.3/8-RHP
RHP MSF1-3/8 Imperial Four Bolt Square Cast Iron Flange Housing and 1-3/8 inch Bore Grub Screw Insert
RHP MSF1-3/8 Imperial Four Bolt Square Cast Iron Flange Housing and 1-3/8 inch Bore Grub Screw Insert
Regular price
$143.00
ex VAT
Regular price
Sale price
$143.00
ex VAT
In stock
Price Break
10+
$67.81
20+
$64.00
30+
$63.24
40+
$62.48
50+
$61.71
75+
$60.95
100+
$57.14
200+
$56.38
250+
$55.62
500+
$54.86
1000+
$53.33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSF Series Heavy Duty 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- MSF
- Bolt Hole Centres:
- 101.5mm = 3.996 inch

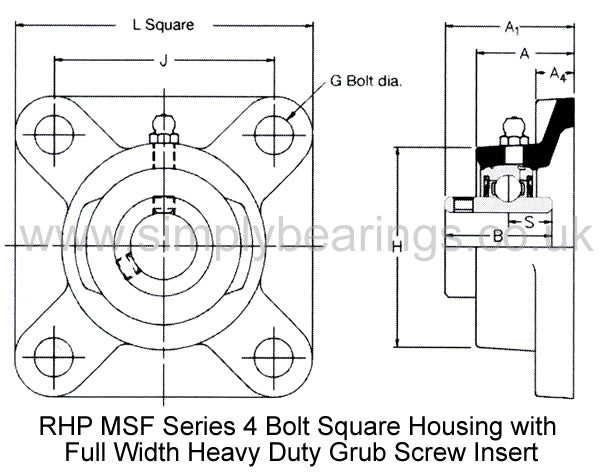

Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 5.126 inch |
| H | 4 inch |
| J | 3.996 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A1 | 2.133 inch |
| A4 | 0.5 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-3/8G+insonly">1040-1-3/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
