SKU: MSC95-RHP

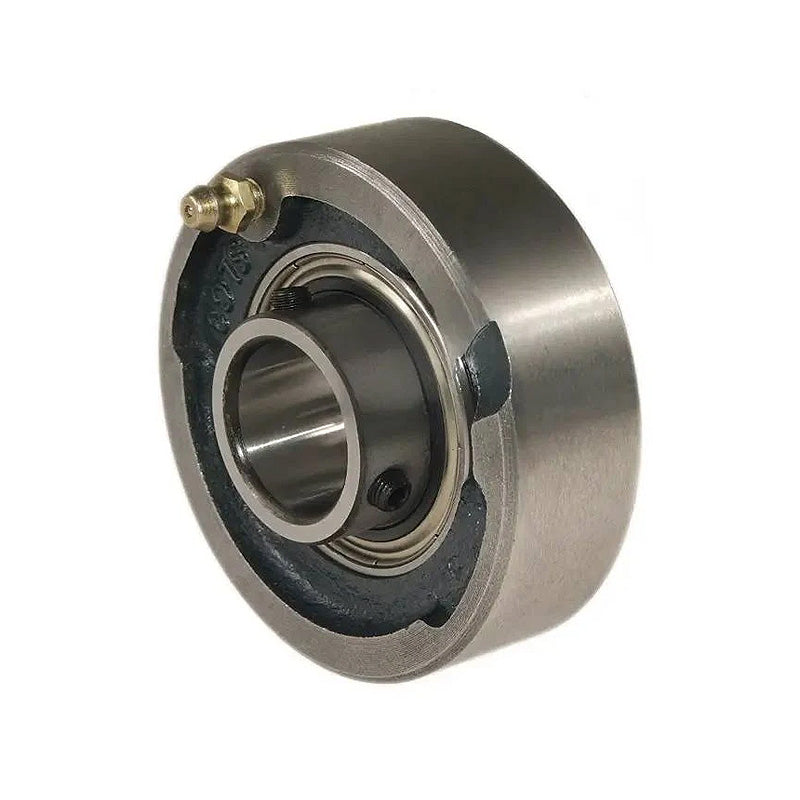

RHP MSC95 Cast Iron Cartridge Unit with 95mm Bore Insert 241.33mm Outside Diameter
RHP MSC95 Cast Iron Cartridge Unit with 95mm Bore Insert 241.33mm Outside Diameter
Regular price
$1,622.59
ex VAT
Regular price
Sale price
$1,622.59
ex VAT
In stock
Price Break
10+
$769.43
20+
$726.20
30+
$717.56
40+
$708.91
50+
$700.27
75+
$691.62
100+
$648.39
200+
$639.75
250+
$631.10
500+
$622.46
1000+
$605.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 241.33mm
- Style:
- MSC
Technical
Technical

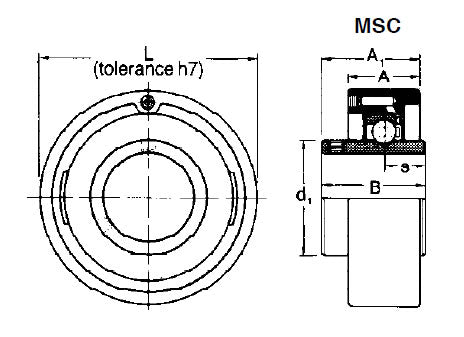

| Bore | 95mm |
|---|---|
| L | 241.325mm |
| A | 76.2mm |
| A1 | 106.38mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43 |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rex max speed | 1600 rpm |
| Weight | 20.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-95G+insonly">3095-95G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
