SKU: MG10_0.25

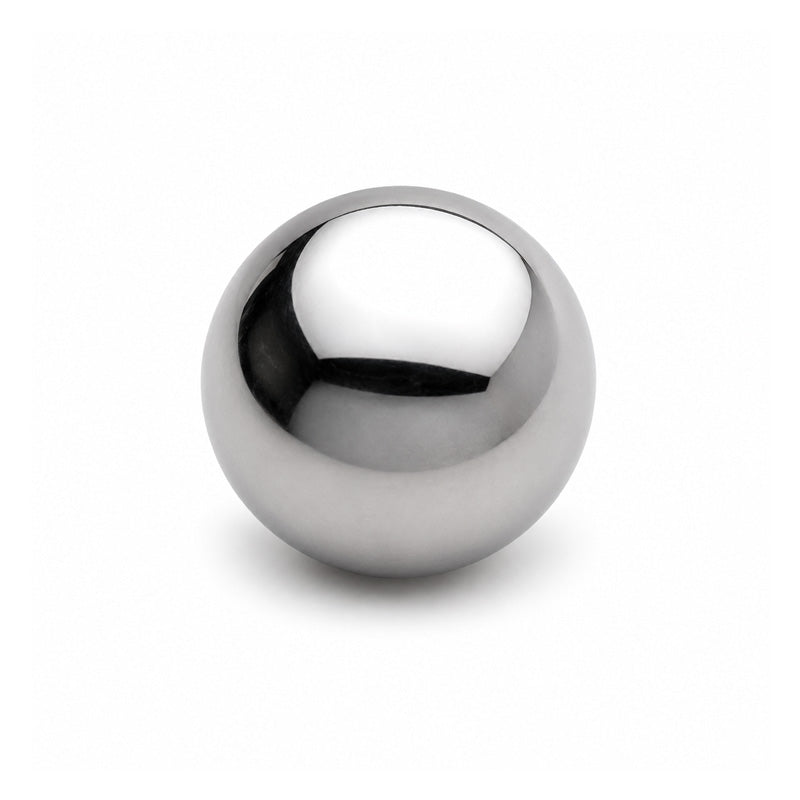

0.25mm Diameter Grade 10 Hardened 52100 Chrome Steel Ball Bearing

Name: 0.25mm Diameter Grade 10 Hardened 52100 Chrome Steel Ball Bearing
Brand: Simply Loose Ball
SKU: MG10_0.25
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

High Precision Grade 10 Hardened Steel Ball Bearings: High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium AISI 52100 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle.
Manufactured in compliance to the following international standards: AISI52100 / EN31 / BS534A99 / W1.3505 / BS535A99 / UNI100C6 / AFN100C6 / DIN100C6 / JIS G4805 SUJ2

Brand / Quality:: Simply Loose Ball - High Quality
Outside Diameter:: 0.25mm
Grade:: 10

Technical

Material	AISI 52100 Chrome Steel
Min Crush Load	7kg
Hardness	60-67 HRC
Hardness Depth	Through Hardened
Corrosion Resistance	Keep Oiled
Note	Not Drillable
Approx Weight Each	0.0000638954g
Attracted to Magnets	Yes

Downloads

52100.pdf
