SKU: MB-03-DUN

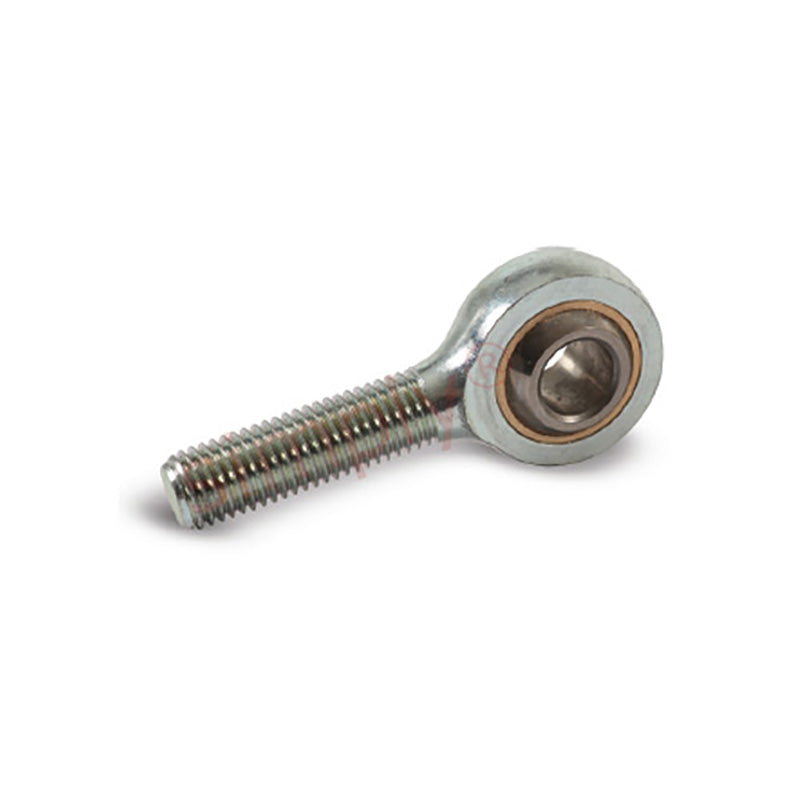

Dunlop MB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Male Rod End 3/16 UNF Thread
Dunlop MB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Male Rod End 3/16 UNF Thread
Regular price
$19.41
ex VAT
Regular price
Sale price
$19.41
ex VAT
In stock
Description
Description
|
MB Series Bronze Lined Maintenance Required Rod Ends with Male Thread: The MB series are a standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Suitable for high precision motion transfer applications and extended wear life. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: Bronze SAE660 and oil impregnated sintered bronze. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C. Operating Temperature Range: Operating temperature range -34c to +149c Benefits: Low friction, available in metric and imperial thread and bore sizes, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/16 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 4.76mm = 0.187 (3/16) inch
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3/16 inch |
|---|---|
| Thread | 3/16 UNF |
| W | 0.312 inch |
| H | 0.25 inch |
| D | 0.625 inch |
| L1 | 1.25 inch |
| L2 | 0.75 inch |
| O | 0.306 inch |
| Static load | 6360 N |
