SKU: M802048/M802011-TIM

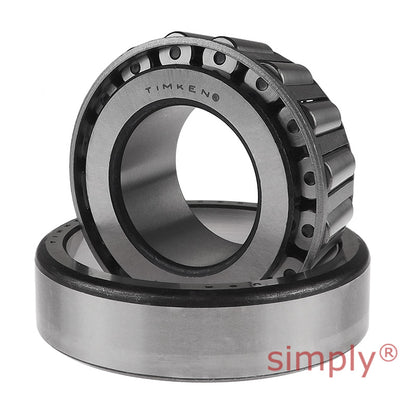

Timken M802048/M802011 TS Single-Row Taper Roller Bearing 1.625x3.25x1.045 inch
Timken M802048/M802011 TS Single-Row Taper Roller Bearing 1.625x3.25x1.045 inch
Regular price
$95.48
ex VAT
Regular price
Sale price
$95.48
ex VAT
In stock
Price Break
10+
$45.28
20+
$42.73
30+
$42.23
40+
$41.72
50+
$41.21
75+
$40.70
100+
$38.16
200+
$37.65
250+
$37.14
500+
$36.63
1000+
$35.61
Quantity
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 26.54mm = 1.045 inch
Technical
Technical
| d | 41.275mm = 1.625 inch |
|---|---|
| D | 82.55mm = 3.25 inch |
| T | 26.543mm = 1.045 inch |
| Dynamic (1) C1 | 84900N |
| Factors (5) e | 0.55 |
| Factors (5) Y | 1.1 |
| Dynamic (2) C90 | 22000N |
| Dynamic (2) Ca90 | 20600N |
| Factors (5) K | 1.07 |
| Static C0 | 112000N |
| Bearing B | 25.654mm = 1.01 inch |
| Bearing C | 20.193mm = 0.795 inch |
| Bearing a(3) | -3mm = -0.12 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 50.5mm = 1.99 inch |
| Shaft backing shoulder diameter db | 57mm = 2.24 inch |
| Housing backing shoulder diameter r(4) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Da | 79mm = 3.11 inch |
| Housing backing shoulder diameter Db | 70mm = 2.76 inch |
| Cage Aa | 2.3mm = 0.09 inch |
| Cage Ab | 1.7mm = 0.07 inch |
| G1 | 30.9 |
| G2 | 11.9 |
| Cg | 0.0899 |
