SKU: M-UELFL210D1-NTN

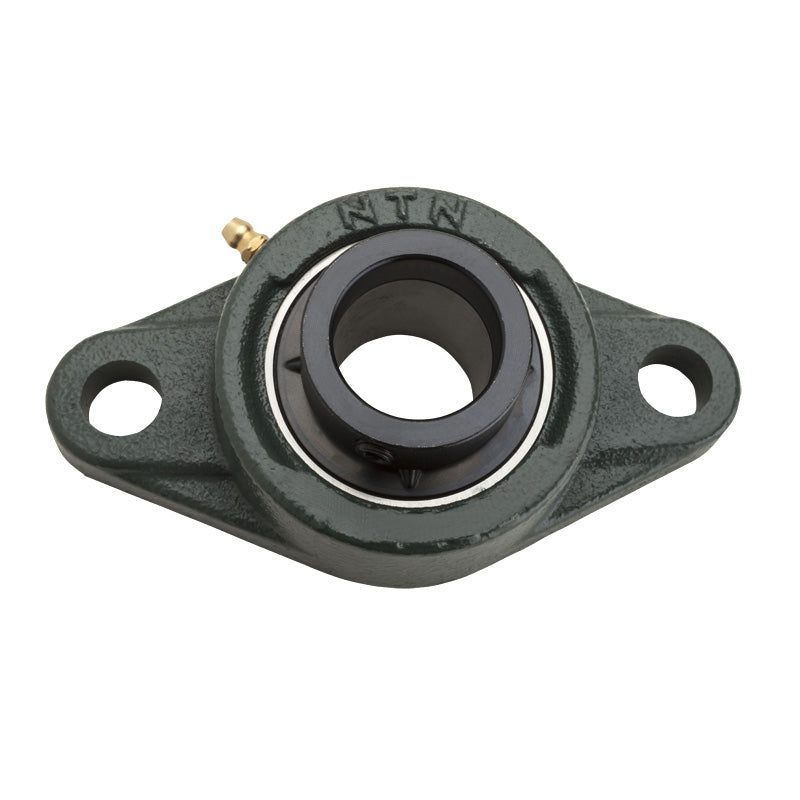

NTN M-UELFL210D1 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL210D1 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 197mm |
| J | 157mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 19mm |
| L | 115mm |
| A<sub>0</sub> | 60.1mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| F min. | 67mm |
| Fixing bolt | M16 |
| Mass | 2.2 kg |
