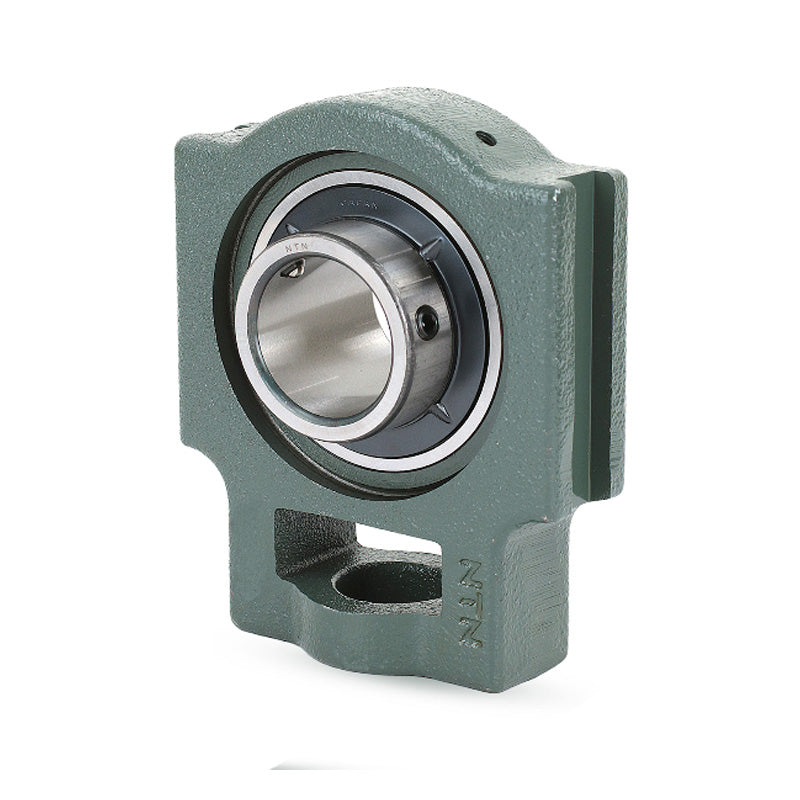

• NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: M-UCT208D1-NTN

NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days

NTN M-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
$74.75 ex VAT
$74.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.45
4+ $33.46
9+ $33.06
19+ $32.66
49+ $32.26
99+ $31.86
499+ $29.87
999+ $29.47
1999+ $29.08
2999+ $28.68
4999+ $27.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 40mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 83mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 114mm
L 144mm
A<sub>2</sub> 33mm
A 49mm
r 56mm
L<sub>1</sub> 88mm
B 49.2mm
S 19mm
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 24 kg
