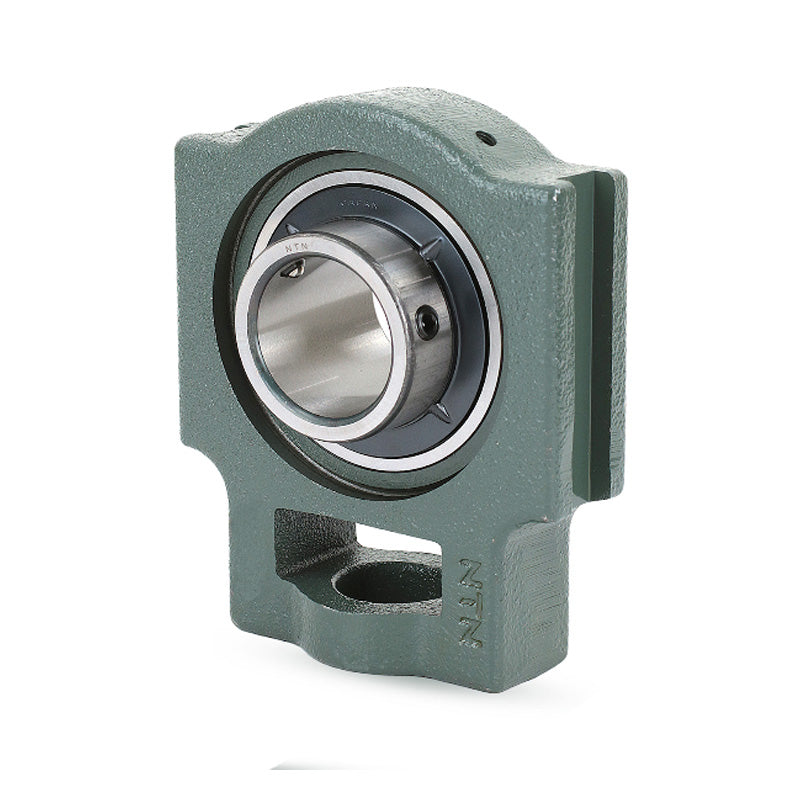

• NTN M-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: M-UCT207D1-NTN

NTN M-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days

NTN M-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
$74.75 ex VAT
$74.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.45
4+ $33.46
9+ $33.06
19+ $32.66
49+ $32.26
99+ $31.86
499+ $29.87
999+ $29.47
1999+ $29.08
2999+ $28.68
4999+ $27.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 35mm
N<sub>1</sub> 16mm
L<sub>2</sub> 15mm
H<sub>2</sub> 64mm
N<sub>2</sub> 37mm
N 22mm
L<sub>3</sub> 64mm
A<sub>1</sub> 12mm
H<sub>1</sub> 89mm
H 102mm
L 129mm
A<sub>2</sub> 30mm
A 37mm
r 51mm
L<sub>1</sub> 78mm
B 42.9mm
S 17.5mm
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.6 kg
