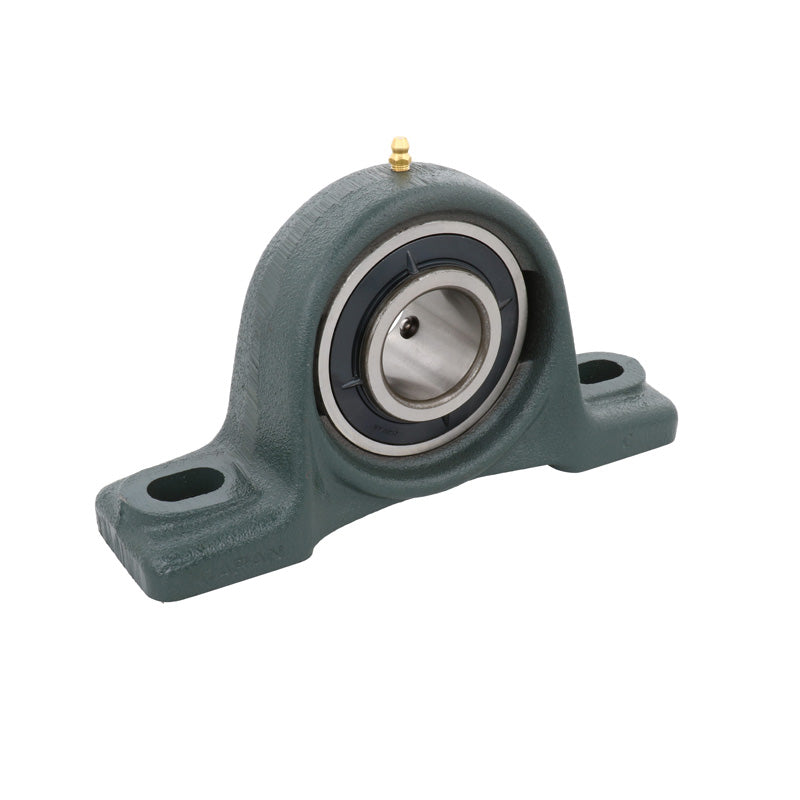

• NTN M-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
1 1

SKU: M-UCP204D1-NTN

NTN M-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days

NTN M-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
$42.87 ex VAT
$42.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.33
4+ $19.19
9+ $18.96
19+ $18.73
49+ $18.50
99+ $18.27
499+ $17.13
999+ $16.90
1999+ $16.67
2999+ $16.44
4999+ $15.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCP
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter 20mm
H 33.3mm
L 127mm
J 95mm
A 38mm
N 13mm
N<sub>1</sub> 16mm
H<sub>1</sub> 14mm
H<sub>2</sub> 65mm
L<sub>1</sub> 42mm
B 31mm
S 12.7mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.7 kg
