SKU: M-UCFC218-308D1-NTN

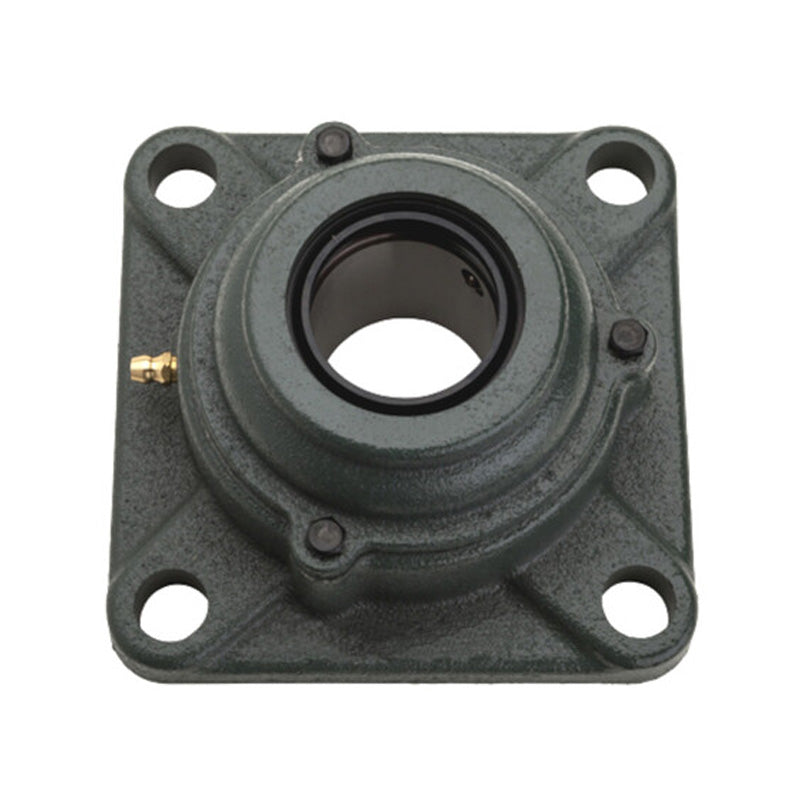

NTN M-UCFC218-308D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 3-1/2 inch Insert - Allow 2-3 Days
NTN M-UCFC218-308D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 3-1/2 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
|

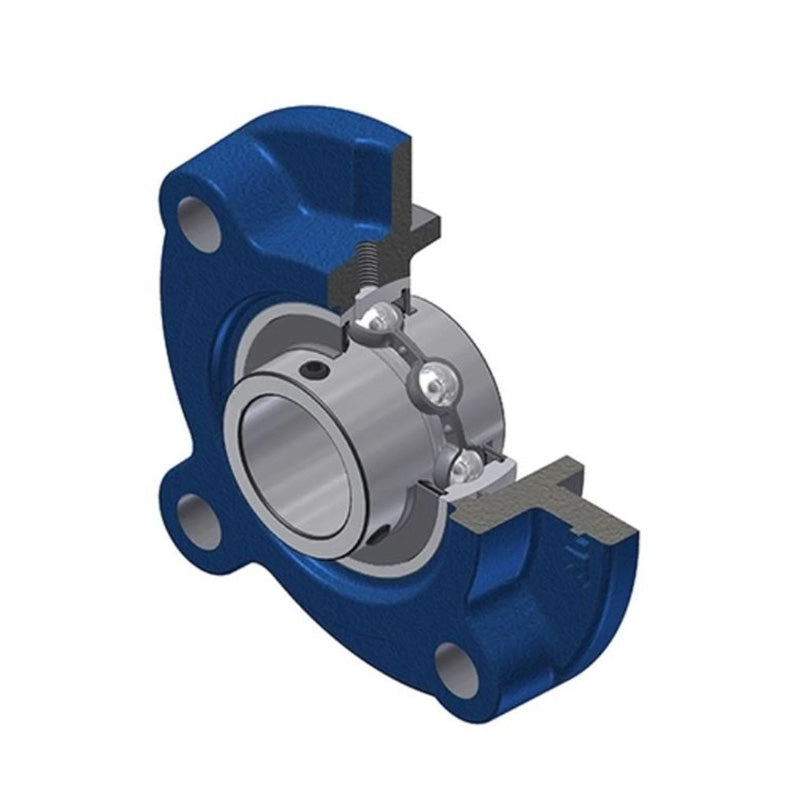

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 6-1/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-1/2 inch |
| L | 10-7/16 inch |
| J | 8-21/32 inch |
| (J<sub>1</sub>) | 6-1/8 inch |
| A<sub>2</sub> | 55/64 inch |
| N | 29/32 inch |
| A<sub>3</sub> | 45/64 inch |
| A<sub>1</sub> | 1-31/32 inch |
| A | 2-43/64 inch |
| H<sub>3</sub> | 7.4803 inch |
| A<sub>0</sub> | 3-51/64 inch |
| B | 3.7795 inch |
| S | 1.563 inch |
| F (Min.) | 4-11/16 inch |
| Fixing bolt | 3/4 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 29 lbs |
