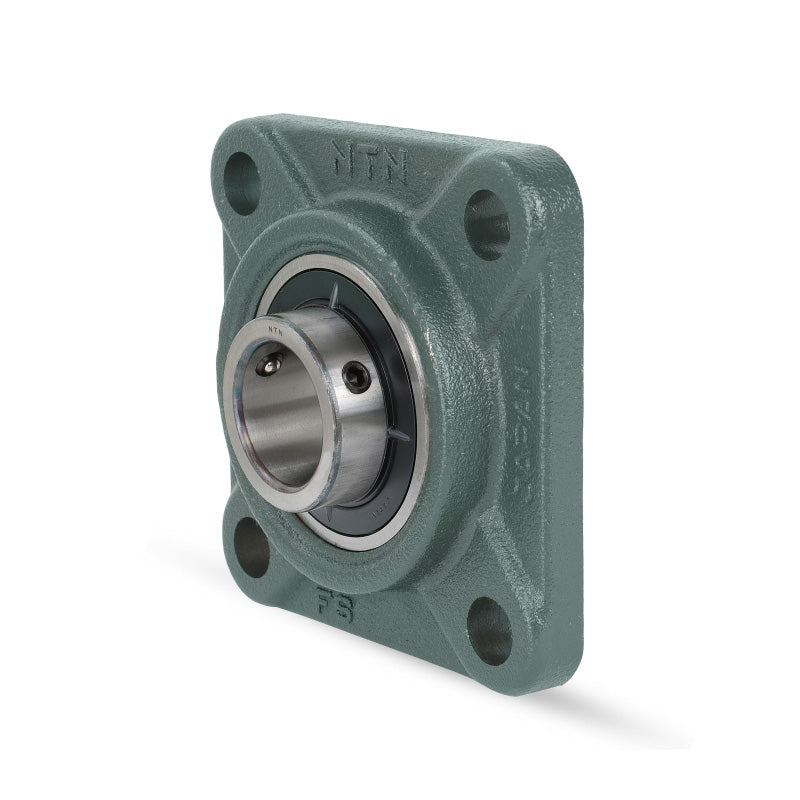

• NTN M-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
1 1

SKU: M-UCF204D1-NTN

NTN M-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days

NTN M-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
$42.87 ex VAT
$42.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.33
4+ $19.19
9+ $18.96
19+ $18.73
49+ $18.50
99+ $18.27
499+ $17.13
999+ $16.90
1999+ $16.67
2999+ $16.44
4999+ $15.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCF
Bolt Hole Centres:
64mm
Technical
--- Dimensions
Shaft diameter 20mm
L 86mm
J 64mm
A<sub>2</sub> 15mm
A<sub>1</sub> 11mm
A 25.5mm
N 12mm
A<sub>0</sub> 33.3mm
B 31mm
S 12.7mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.6 kg
