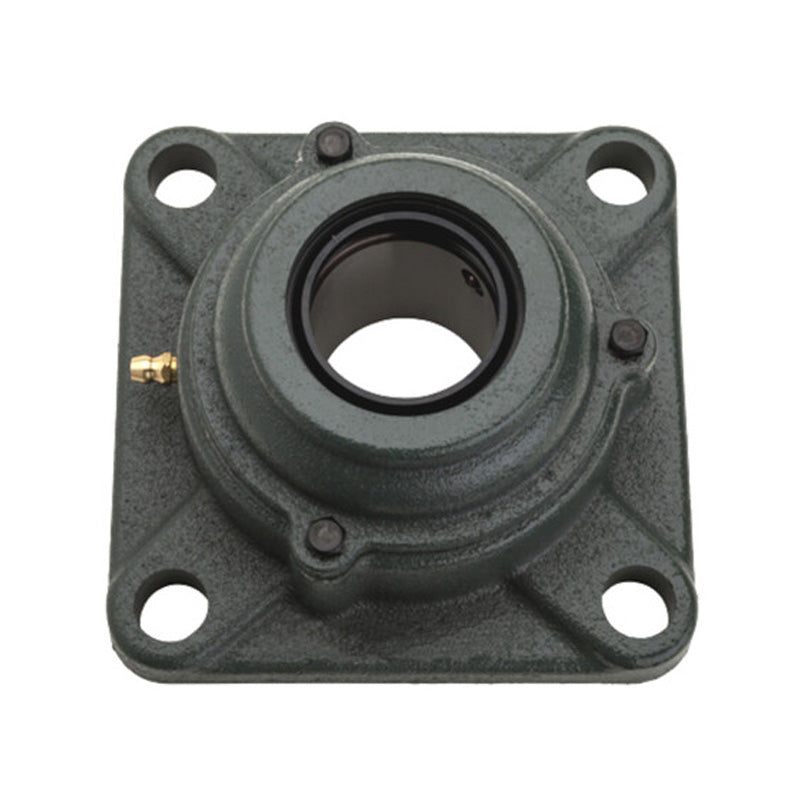

NTN M-C-UCF213D1 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCF213D1 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCF
- Bolt Hole Centres:
- 149mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 187mm |
| J | 149mm |
| A<sub>2</sub> | 30mm |
| A<sub>1</sub> | 22mm |
| A | 50mm |
| N | 19mm |
| B | 65.1mm |
| S | 25.4mm |
| A<sub>5</sub> | 90mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 6.4 kg |
