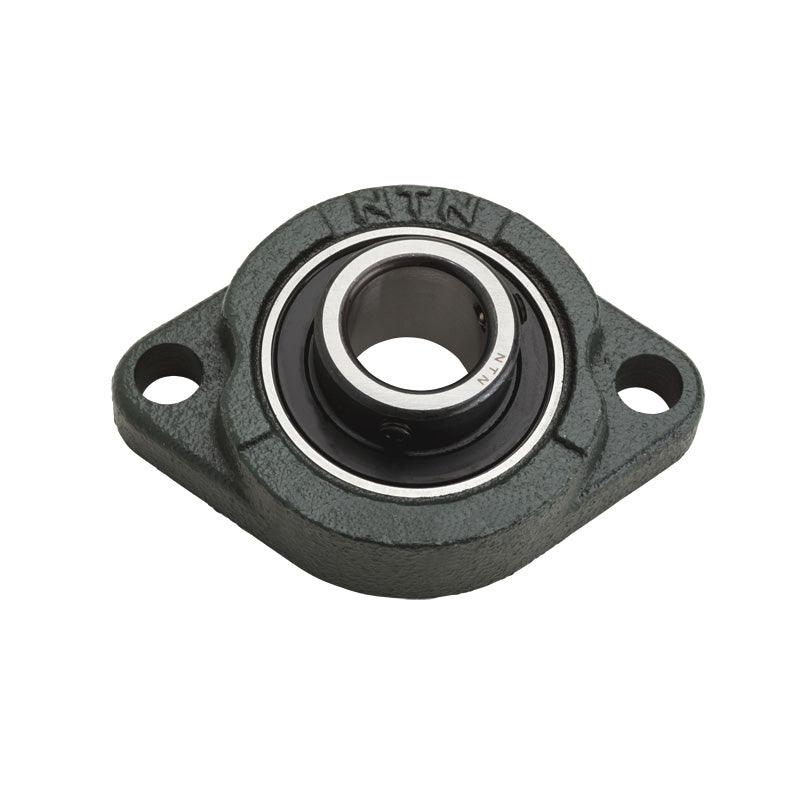

NTN M-ASFD208 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
NTN M-ASFD208 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- ASFD
- Bolt Hole Centres:
- 119mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 148mm |
| J | 119mm |
| A<sub>2</sub> | 14.5mm |
| A | 25mm |
| N | 13.5mm |
| L | 104mm |
| A<sub>0</sub> | 43.5mm |
| B | 38mm |
| S | 9mm |
| Fixing bolt | M12 |
| Mass | 1.3 kg |
