SKU: LR6001-NPPU-INA

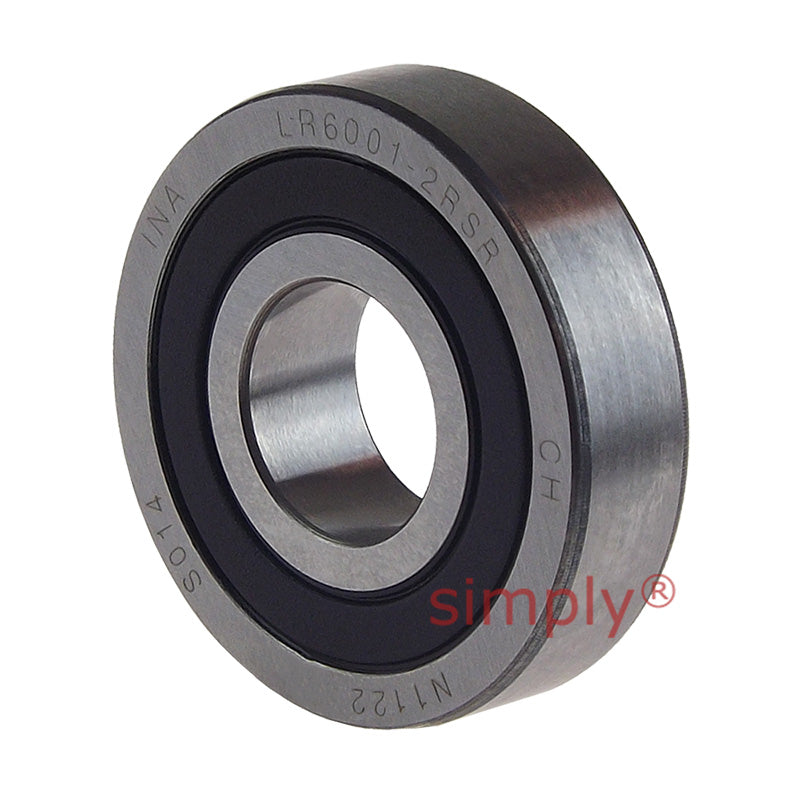

INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm

INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm
Regular price $39.43 ex VAT
Regular price Sale price $39.43 ex VAT
Sale Sold out

Equivalent to: LR6001-2RSR LR6001-NPPU LR60012RS LR6001NPPU

In stock

Price Break
3+ $18.70
5+ $17.65
9+ $17.44
19+ $17.23
49+ $17.02
74+ $16.81
99+ $15.76
199+ $15.55
249+ $15.34
499+ $15.13
999+ $14.71
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

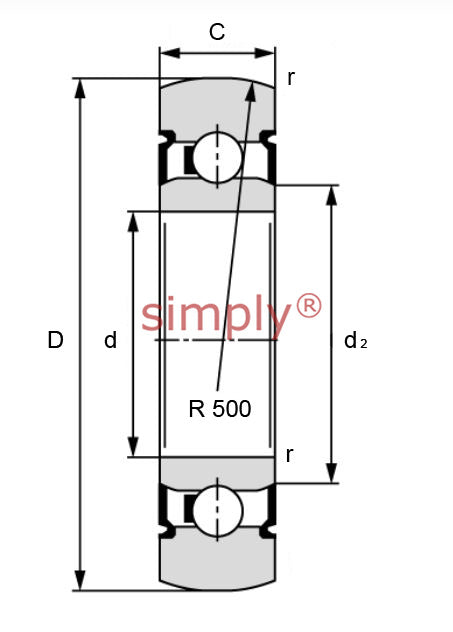

d 12mm
D 30mm
C 8mm
d<sub>2</sub> 16.6mm
Crowning Radius (R) 500mm
r<sub>min</sub> 0.3mm
Mass (m) 0.03kg
Dynamic Load (C<sub>r w</sub>) 5300N
Static Load (C0<sub>r w</sub>) 2750N
Fatigue Limit Load (C<sub>ur w</sub>) 144N
Speed (n<sub>D G</sub>) 15000 1/min
