SKU: LMEK-8-UU-EU

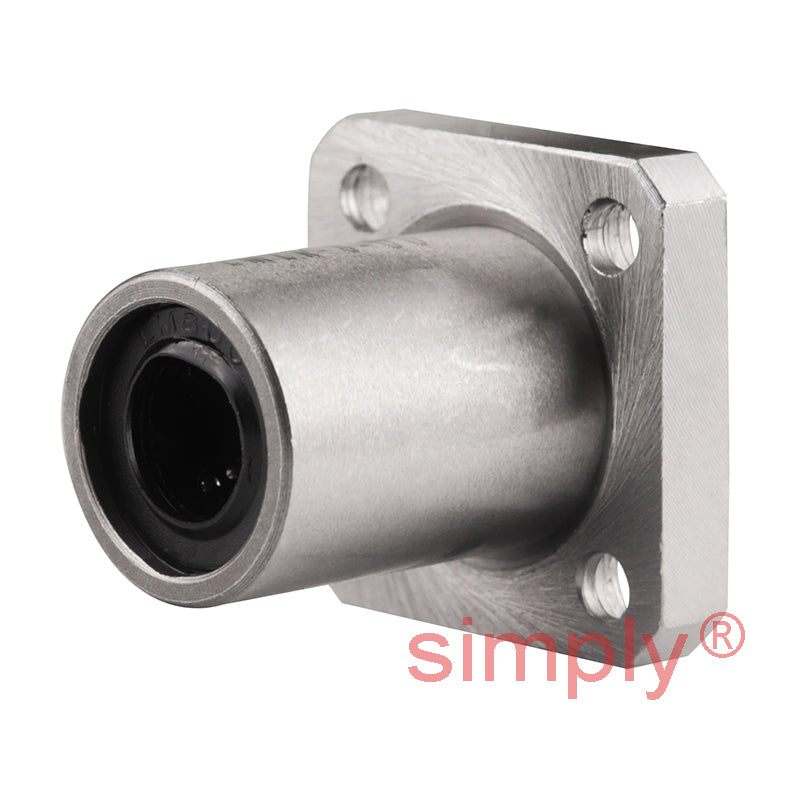

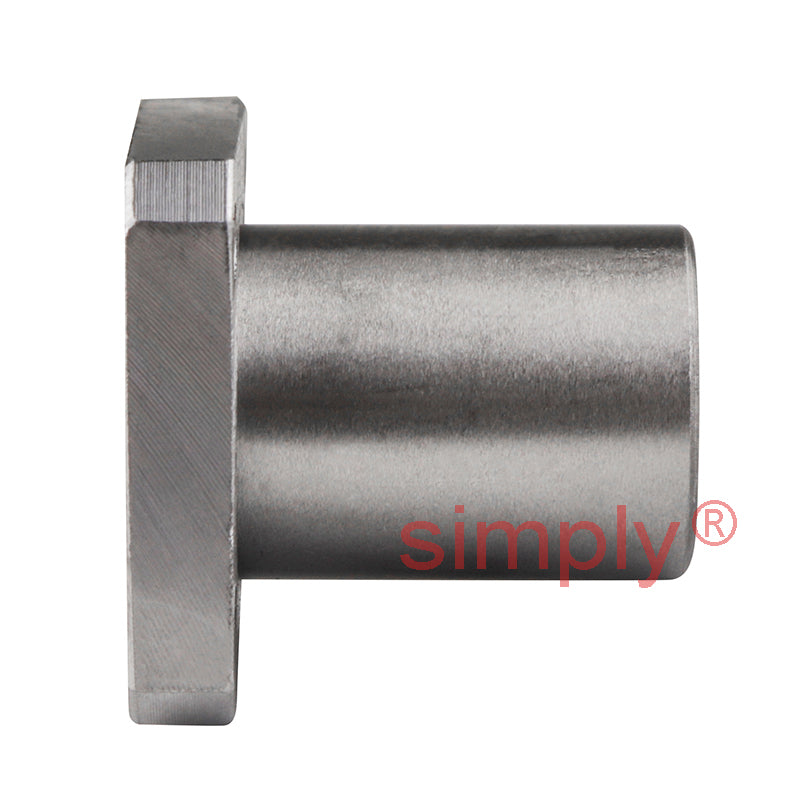

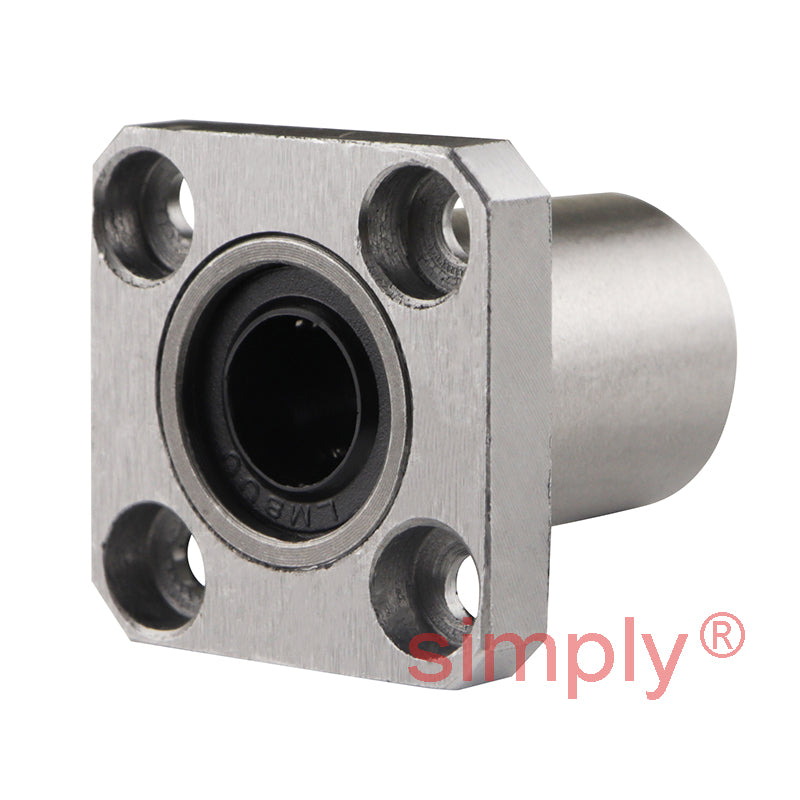

LMEK8UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x25mm

LMEK8UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x25mm
$36.99 ex VAT
$36.99 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
5+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
74+ $15.77
99+ $14.78
199+ $14.58
249+ $14.39
499+ $14.19
999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
25mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 8mm
Bore Clearance +0.008/0mm
D 16mm
D Clearance 0/-0.008mm
L 25mm
L Clearance 0/-0.2mm
D<sub>1</sub> 32mm
D<sub>1</sub> Clearance 0/-0.2mm
H 5mm
PCD 24mm
K 25mm
d<sub>1</sub> 3.4mm
d<sub>2</sub> 6.5mm
h 3.3mm
Squareness um 12
Basic Load Rating - Dynamic C 260 N
Basic Load Rating - Static Co 400 N
No of Ball Rows 4
