SKU: LMEK-50-UU-EU

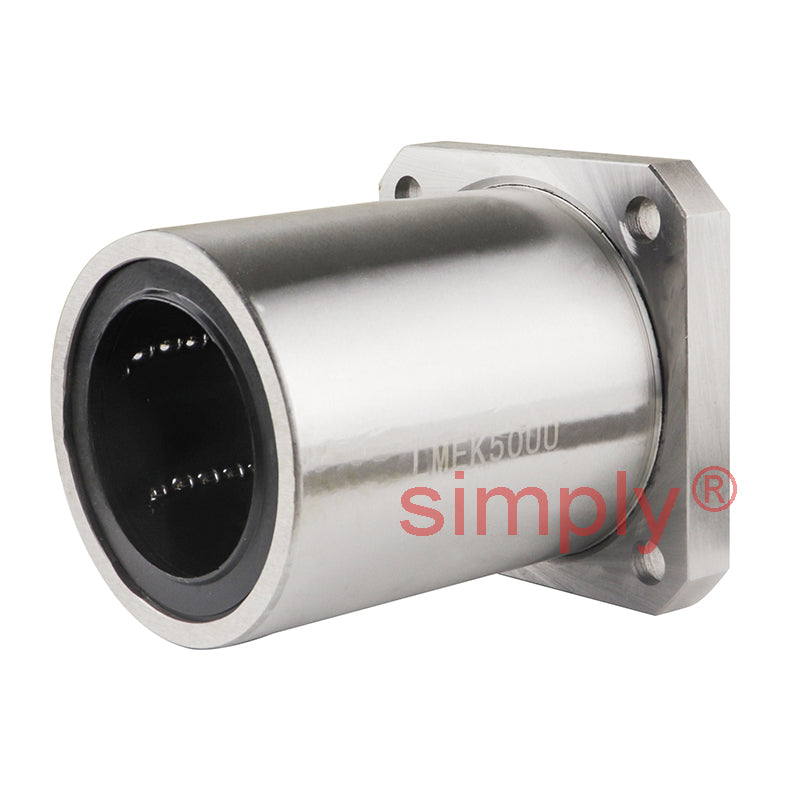

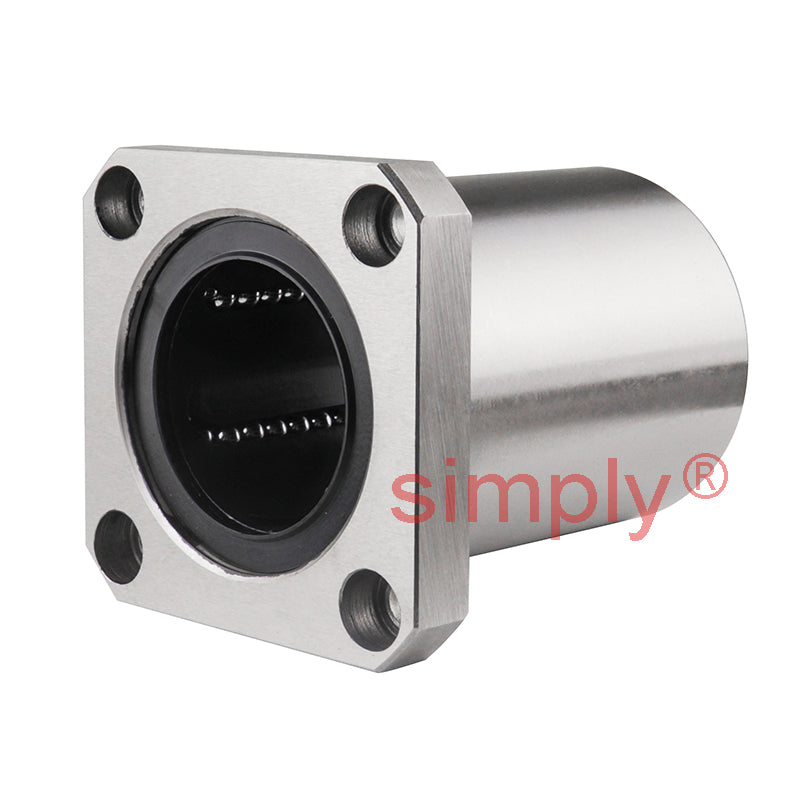

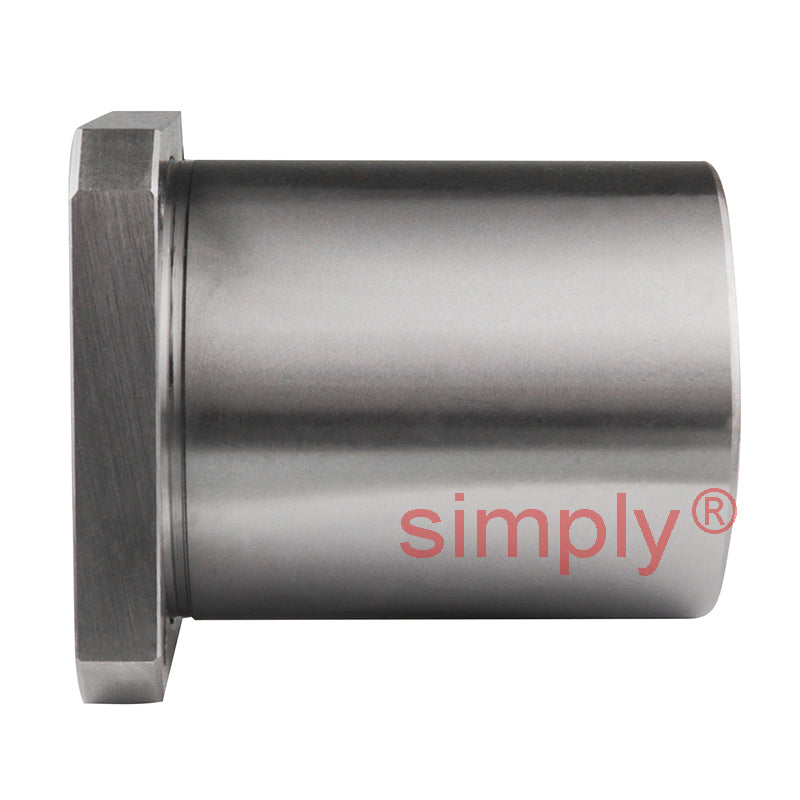

LMEK50UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm

LMEK50UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
$189.96 ex VAT
$189.96 ex VAT
Sale Sold out

In stock

Price Break
3+ $90.08
5+ $85.02
9+ $84.00
19+ $82.99
49+ $81.98
74+ $80.97
99+ $75.91
199+ $74.90
249+ $73.88
499+ $72.87
999+ $70.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
100mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 50mm
Bore Clearance +0.013/-0.002mm
D 75mm
D Clearance 0/-0.013mm
L 100mm
L Clearance 0/-0.3mm
D<sub>1</sub> 112mm
D<sub>1</sub> Clearance 0/-0.3mm
H 13mm
PCD 94mm
K 88mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 3820 N
Basic Load Rating - Static Co 7930 N
No of Ball Rows 6
