• LMEK25UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
  • LMEK25UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
  • LMEK25UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
1 3

SKU: LMEK-25-UU-EU

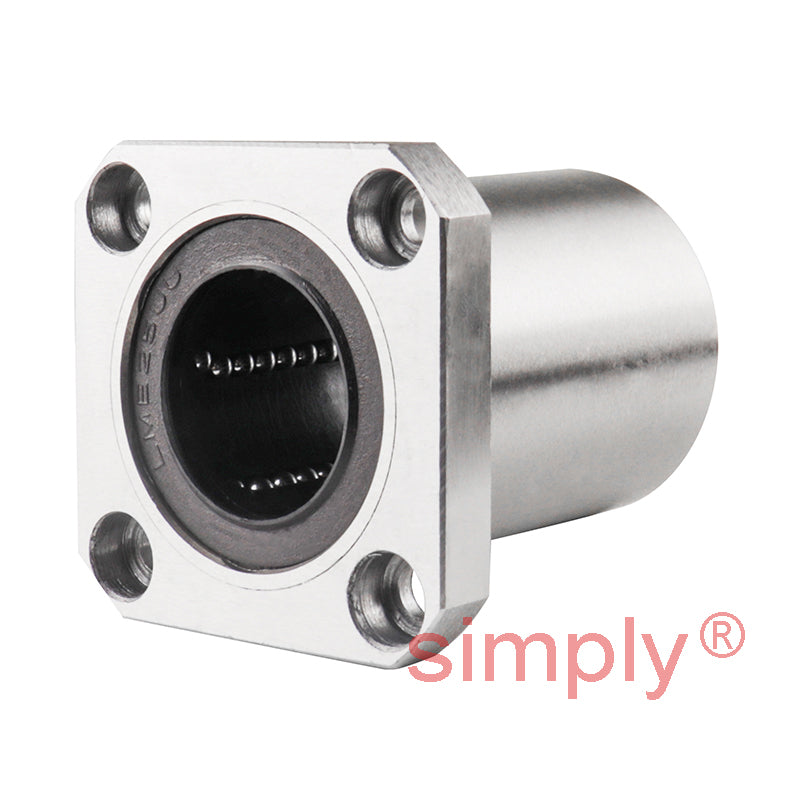

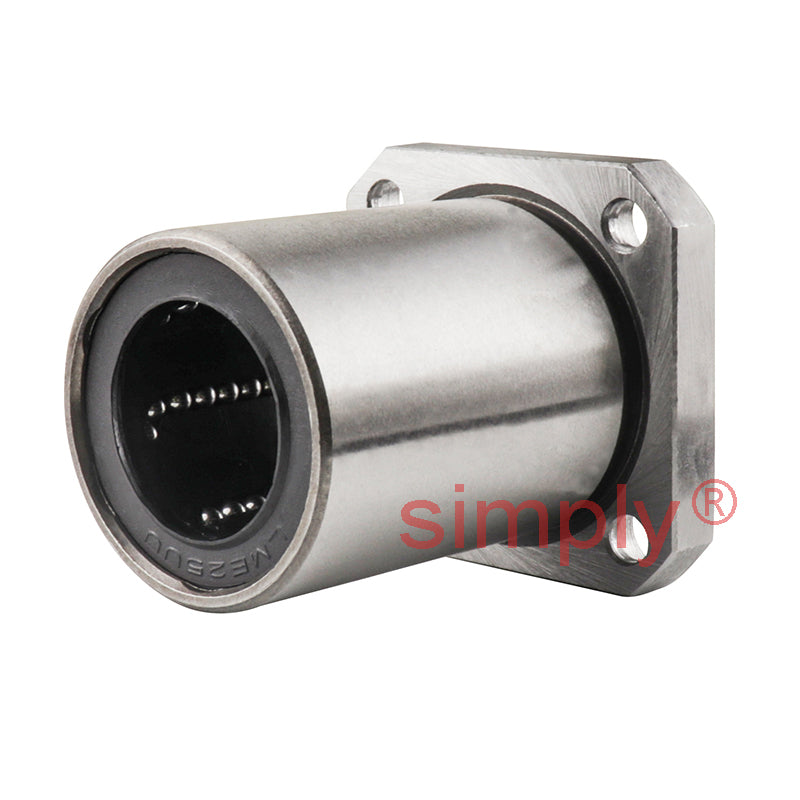

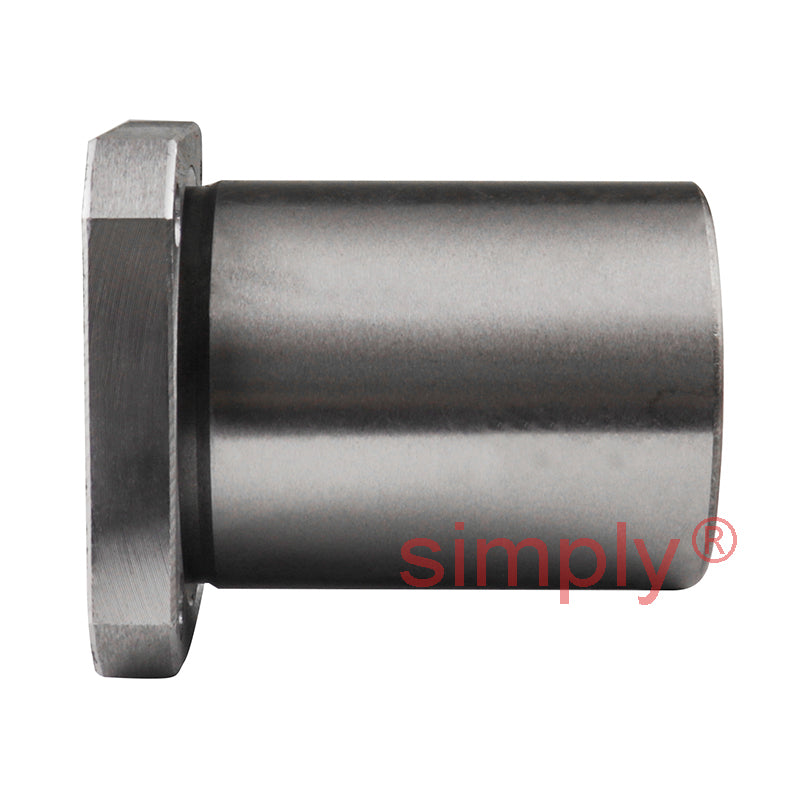

LMEK25UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm

LMEK25UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
$72.56 ex VAT
$72.56 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.41
5+ $32.48
9+ $32.09
19+ $31.70
49+ $31.32
74+ $30.93
99+ $29.00
199+ $28.61
249+ $28.22
499+ $27.84
999+ $27.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 25mm
Bore Clearance +0.011/-0.001mm
D 40mm
D Clearance 0/-0.011mm
L 58mm
L Clearance 0/-0.3mm
D<sub>1</sub> 62mm
D<sub>1</sub> Clearance 0/-0.2mm
H 8mm
PCD 51mm
K 50mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 15
Basic Load Rating - Dynamic C 980 N
Basic Load Rating - Static Co 1560 N
No of Ball Rows 6
