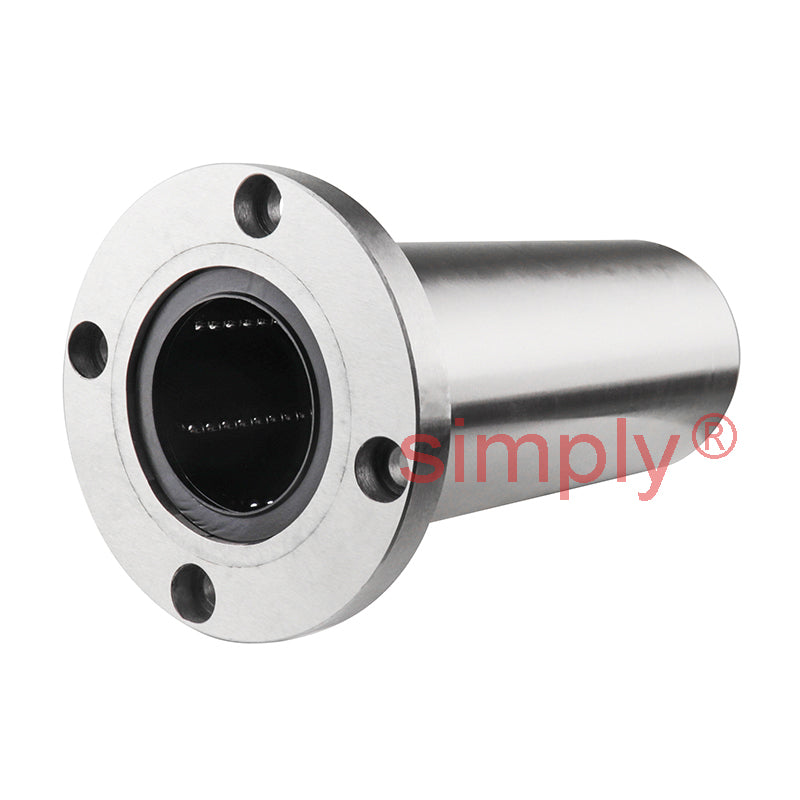

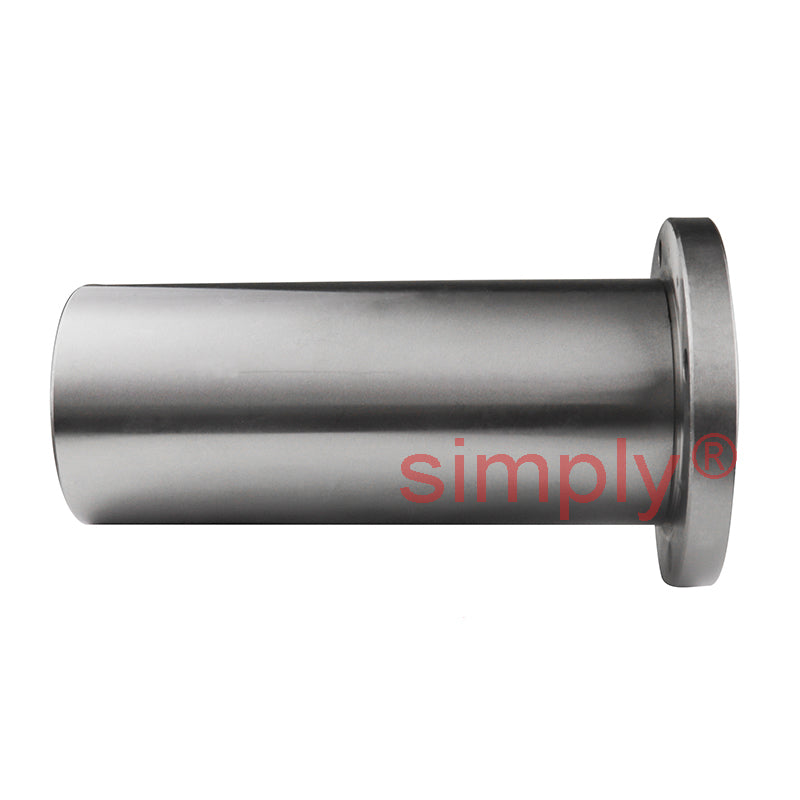

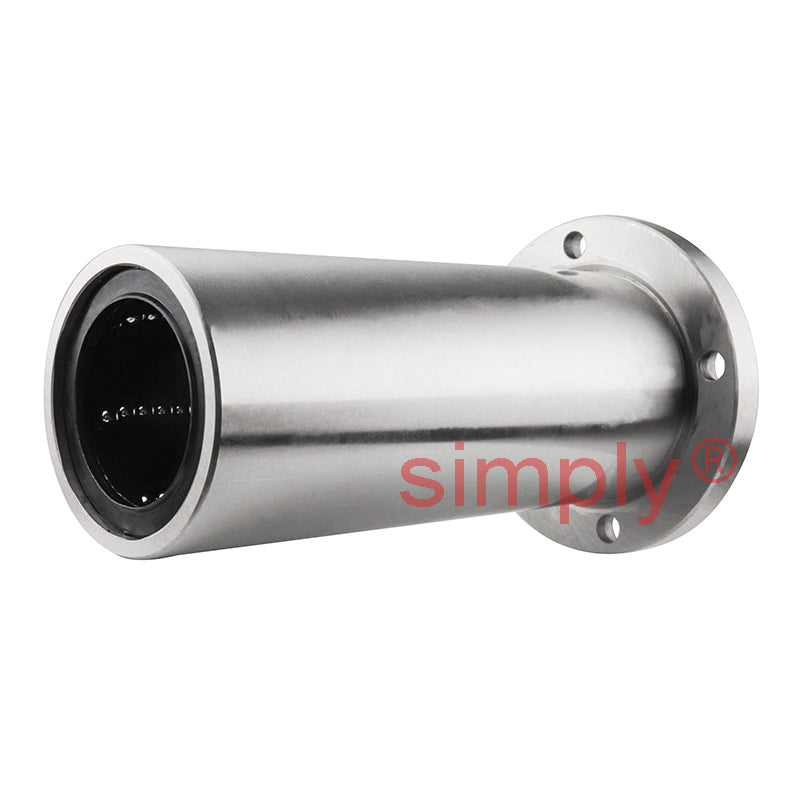

• LMEF50LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm
  • LMEF50LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm
  • LMEF50LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm
1 3

SKU: LMEF-50-L-UU-EU

LMEF50LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm

LMEF50LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x192mm
$387.64 ex VAT
$387.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $183.82
5+ $173.50
9+ $171.43
19+ $169.36
49+ $167.30
74+ $165.23
99+ $154.91
199+ $152.84
249+ $150.78
499+ $148.71
999+ $144.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
192mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 50mm
Bore Clearance +0.016/-0.004mm
D 75mm
D Clearance 0/-0.015mm
L 192mm
L Clearance 0/-0.4mm
B 112mm
B Clearance 0/-0.3mm
H 13mm
PCD 94mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 6080 N
Basic Load Rating - Static Co 15900 N
No of Ball Rows 6
