• LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
1 3

SKU: LMEF-30-UU-EU

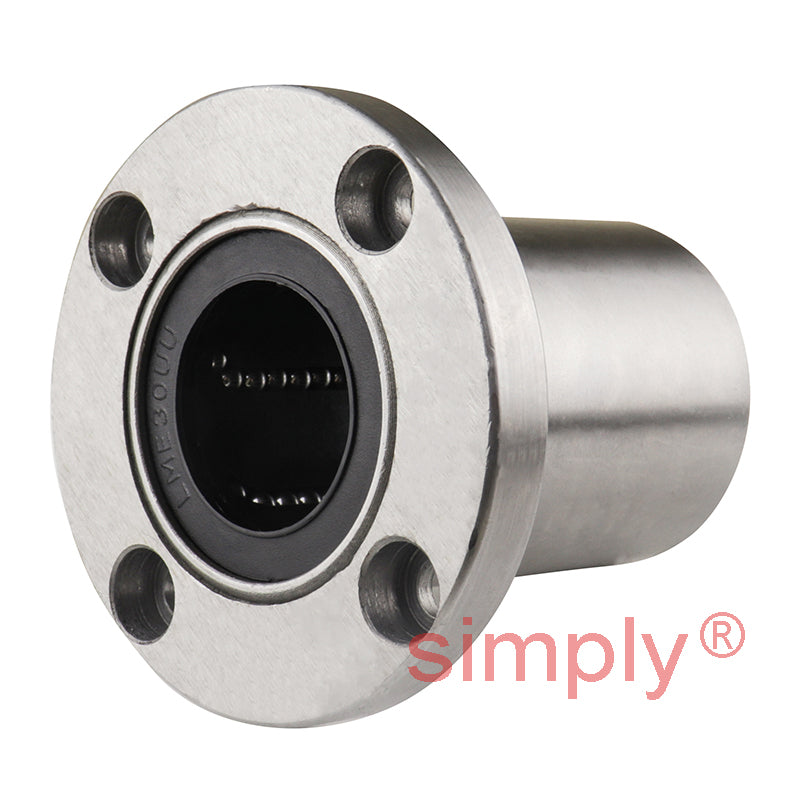

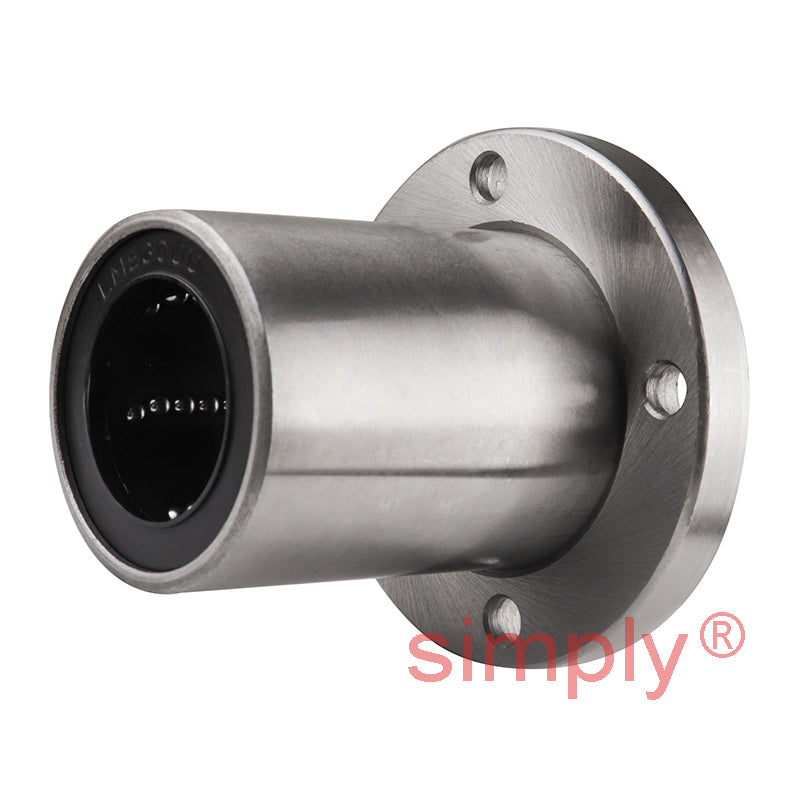

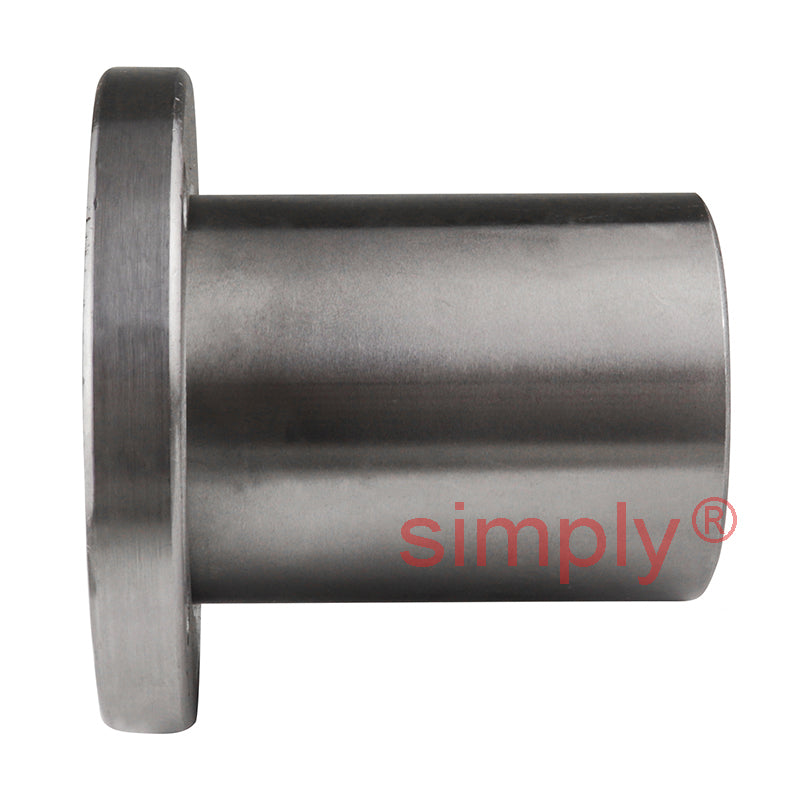

LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm

LMEF30UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
$94.07 ex VAT
$94.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
5+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
74+ $40.10
99+ $37.59
199+ $37.09
249+ $36.59
499+ $36.09
999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Length:
68mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 30mm
Bore Clearance +0.011/-0.001mm
D 47mm
D Clearance 0/-0.011mm
L 68mm
L Clearance 0/-0.3mm
B 76mm
B Clearance 0/-0.2mm
H 10mm
PCD 62mm
d<sub>1</sub> 6.6mm
d<sub>2</sub> 11mm
h 6.5mm
Squareness um 15mm
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 2740 N
No of Ball Rows 6
Weight 0.545 kg
