• LMEF25UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
  • LMEF25UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
  • LMEF25UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
1 3

SKU: LMEF-25-UU-EU

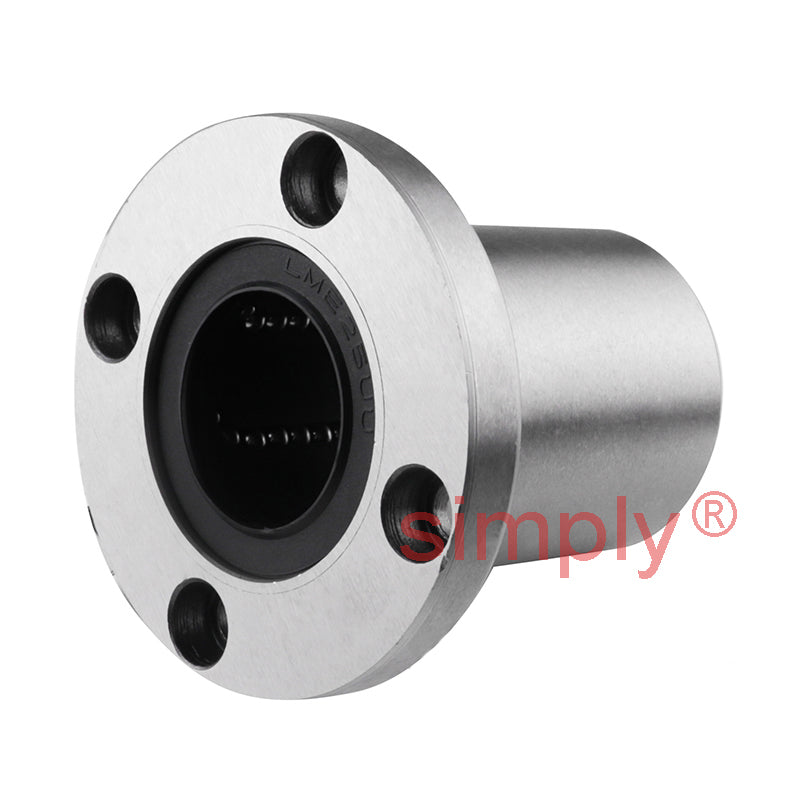

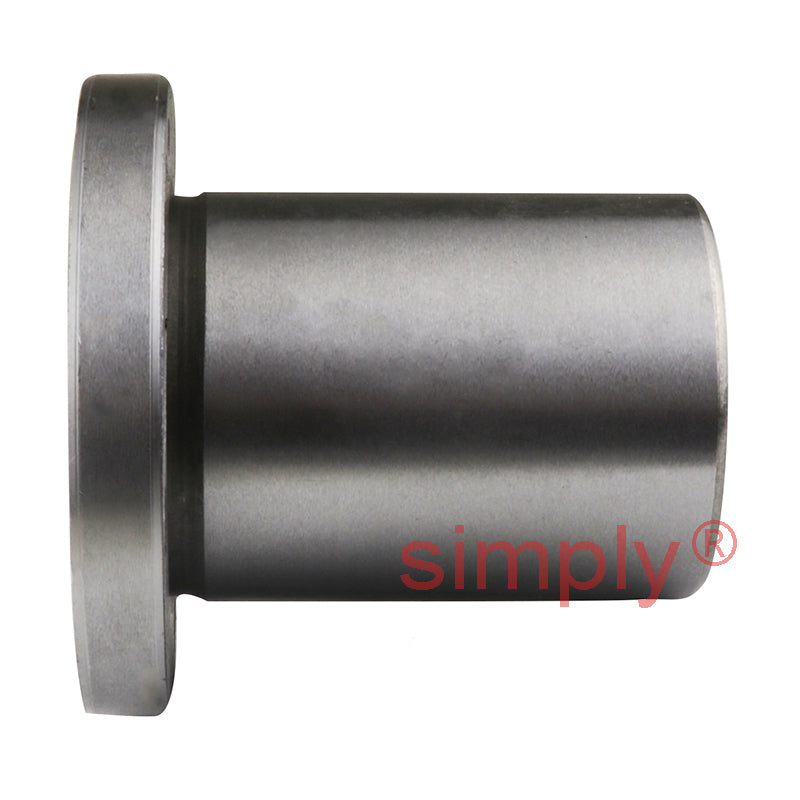

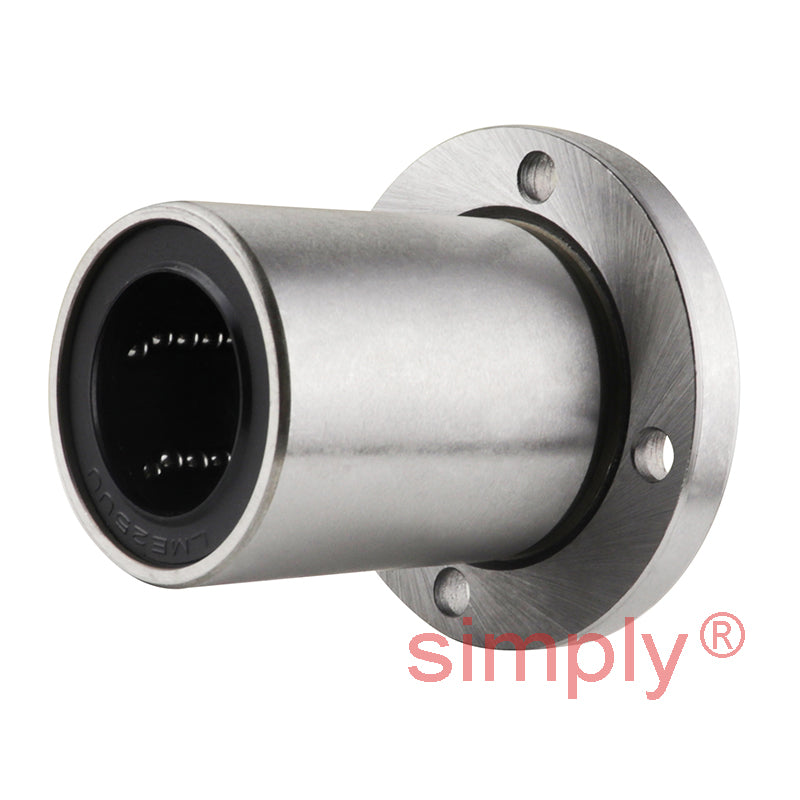

LMEF25UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm

LMEF25UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x58mm
$61.03 ex VAT
$61.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $28.98
5+ $27.35
9+ $27.02
19+ $26.70
49+ $26.37
74+ $26.05
99+ $24.42
199+ $24.09
249+ $23.77
499+ $23.44
999+ $22.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 25mm
Bore Clearance +0.011/-0.001mm
D 40mm
D Clearance 0/-0.011mm
L 58mm
L Clearance 0/-0.3mm
B 62mm
B Clearance 0/-0.2mm
H 8mm
PCD 51mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 15mm
Basic Load Rating - Dynamic C 980 N
Basic Load Rating - Static Co 1560 N
No of Ball Rows 6
Weight 0.335 kg
