SKU: LMB.4.UU.AJ.EU

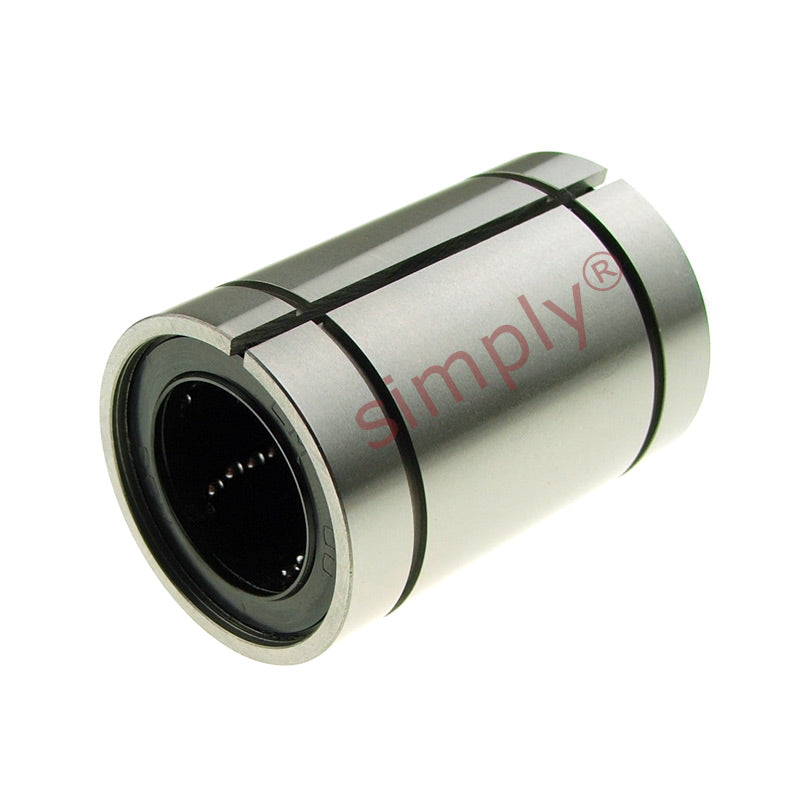

LMB4UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.25x0.5x0.75 inch
Out of stock
Share this product
Description
LMB-AJ Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Length:
- 19.05mm = 0.75 (3/4) inch

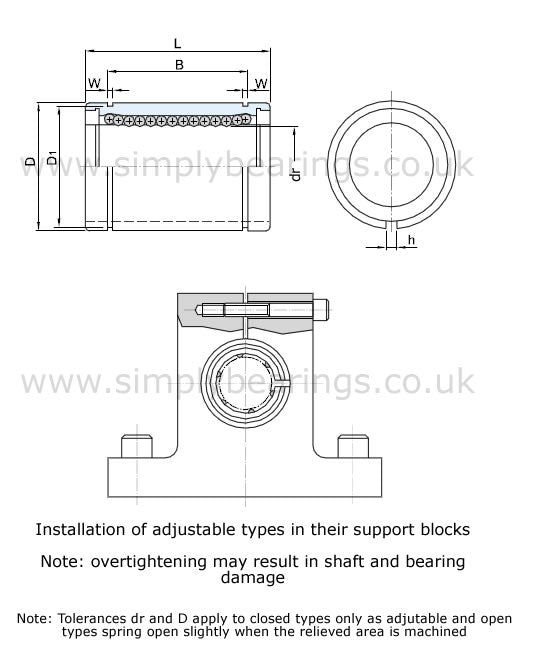

Technical
| Inside Diameter dr | 0.25 inch Tol - 0 to + 6µm |
|---|---|
| Outside Diameter D | 0.5 inch Tol - 0 to + 11µm |
| Length L | 0.75 inch Tol - 0 to + 200µm |
| W | 0.039 inch |
| D1 | 0.4687 inch |
| B | 0.511 inch |
| h | 0.004 inch |
| Eccentricity | 8 to 12µm |
| Dynamic load C | 21 kgf |
| Static load C<sub>o</sub> | 27 kgf |
| Weight | 10 g |
| Number of ball rows | - |
| Tolerances dr & D | Apply to closed type only |
