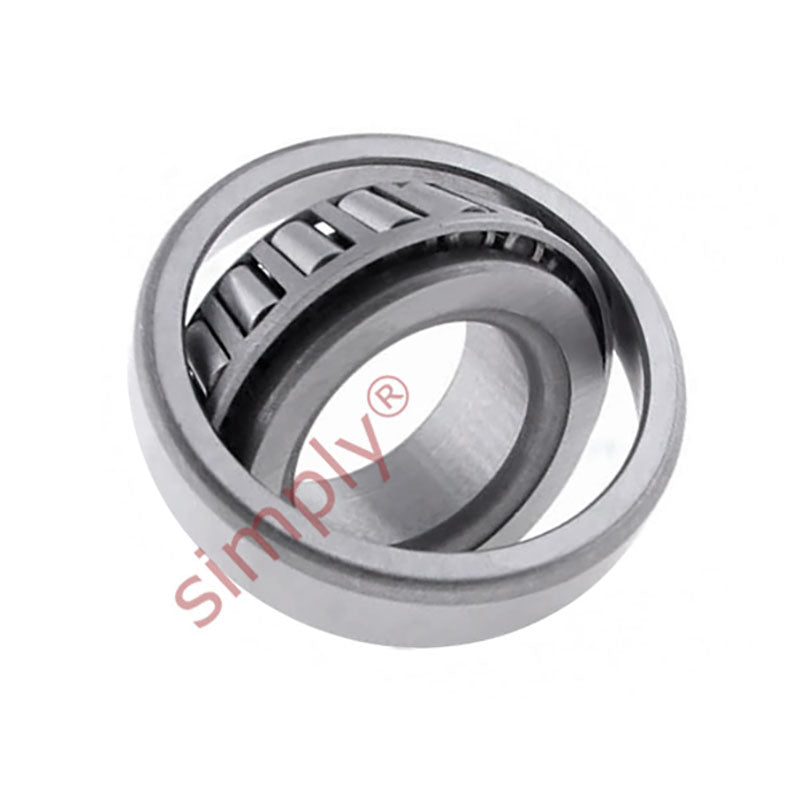

SKF LM501349/2/310/2/QCL7C Imperial Taper Roller Bearing 1.625x2.891x0.77 inches

Name: SKF LM501349/2/310/2/QCL7C Imperial Taper Roller Bearing 1.625x2.891x0.77 inches
Brand: SKF
SKU: LM501349/2/310/2/QCL7C-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 41.28mm = 1.625 (1-5/8) inch
Outside Diameter:: 73.43mm = 2.891 (2-57/64) inch
Width:: 19.56mm = 0.77 inch
Seals / Shields:: None

Technical

d	41.275mm
D	73.431mm
T	19.558mm
Dynamic load	55 kN
Static load	68 kN
Fatigue load limit Pu	7.65 kN
Reference speed	6700 rpm
Limiting speed	10000 rpm
Weight	0.33 kg
d1	56.6mm
B	19.812mm
C	14.732mm
r1r2 min	3.5mm
r3r4 min	0.8mm
a	16mm
da max	48mm
db min	52.5mm
Da min	64mm
Da max	68mm
Db min	69mm
Ca min	4mm
Cb min	4.5mm
ra max	3mm
rb max	0.8mm
Calculation factor e	0.4
Calculation factor Y	1.5
Calculation factor Y0	0.8
