SKU: LM249748/LM249710CD/LM249748XA-TIM

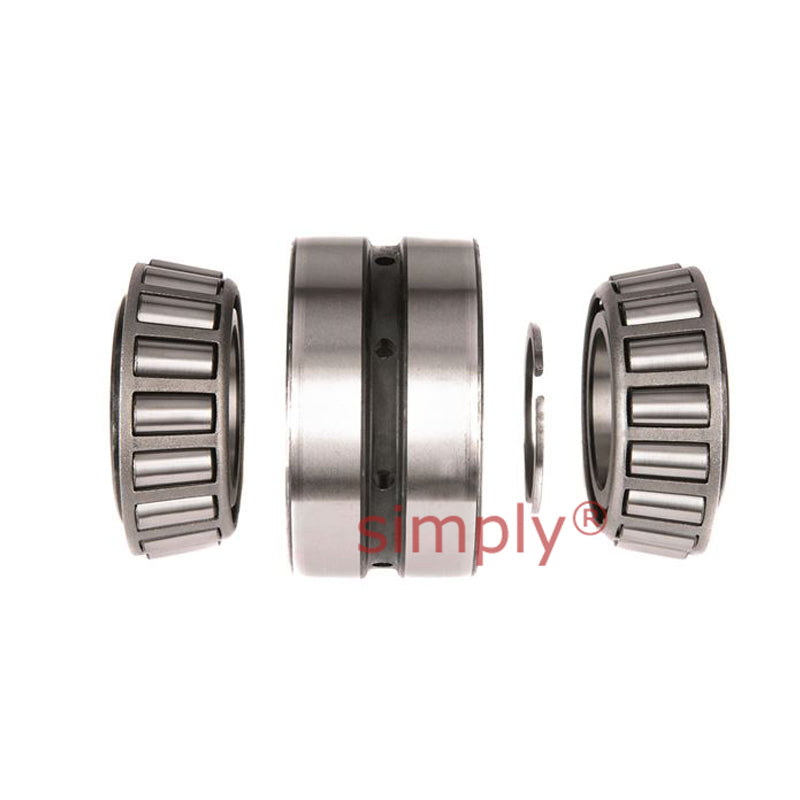

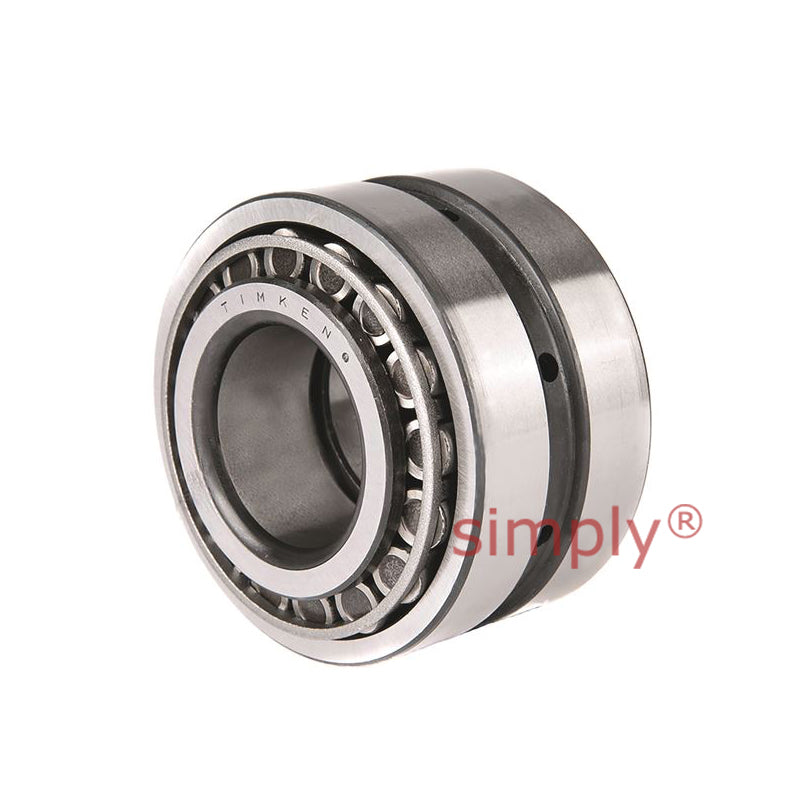

Timken LM249748/LM249710CD/LM249748XA TDO Double Outer Race Taper Roller Bearing 10x13.6875x3.75x2.75 inch
Timken LM249748/LM249710CD/LM249748XA TDO Double Outer Race Taper Roller Bearing 10x13.6875x3.75x2.75 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 254.00mm = 10 inch
- Outside Diameter:
- 347.66mm = 13.6875 inch
- Width:
- 95.25mm = 3.75 inch
Technical
Technical
| d | 254mm = 10 inch |
|---|---|
| D | 347.662mm = 13.6875 inch |
| T | 95.25mm = 3.75 inch |
| C | 69.85mm = 2.75 inch |
| Dynamic (1) C1 | 912000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 136000N |
| Dynamic (2) Ca90 | 77300N |
| Dynamic (2) C90(2) | 236000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 272mm = 10.71 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 333mm = 13.11 inch |
| Pin Ka | 15.7mm = 0.62 inch |
| Pin Kb | 7.1mm = 0.28 inch |
| G1 | 1000 |
| G2 | 166 |
| Cg | 0.1287 |
