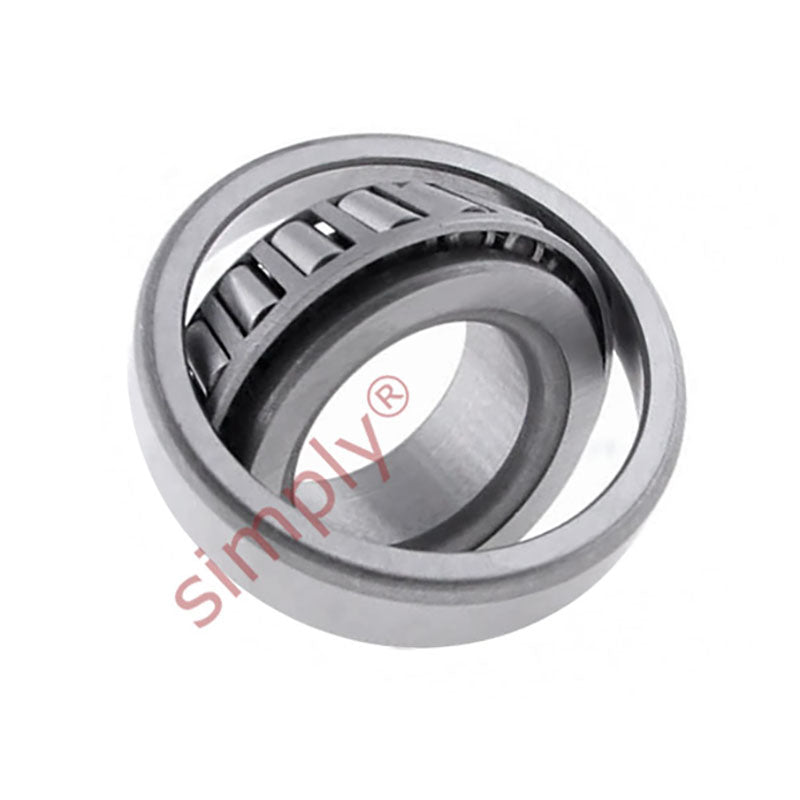

• SKF LM11749/710/Q Imperial Taper Roller Bearing 0.6875x1.57x0.545 inches
1 1

SKU: LM11749/710/Q-SKF

SKF LM11749/710/Q Imperial Taper Roller Bearing 0.6875x1.57x0.545 inches

SKF LM11749/710/Q Imperial Taper Roller Bearing 0.6875x1.57x0.545 inches
$29.52 ex VAT
$29.52 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
17.46mm = 0.687 (11/16) inch
Outside Diameter:
39.88mm = 1.57 inch
Width:
13.84mm = 0.545 inch
Seals / Shields:
None
Technical
d 17.462mm
D 39.878mm
T 13.843mm
Dynamic load 21.2 kN
Static load 20.8 kN
Fatigue load limit Pu 2.12 kN
Reference speed 13000 rpm
Limiting speed 20000 rpm
Weight 0.081 kg
d1 28.9mm
B 14.605mm
C 10.668mm
r1r2 min 1.3mm
r3r4 min 1.3mm
a 9mm
da max 23mm
db min 23.5mm
Da min 33.5mm
Da max 33.5mm
Db min 36mm
Ca min 2mm
Cb min 3mm
ra max 1.3mm
rb max 1.3mm
Calculation factor e 0.28
Calculation factor Y 2.1
Calculation factor Y0 1.1
