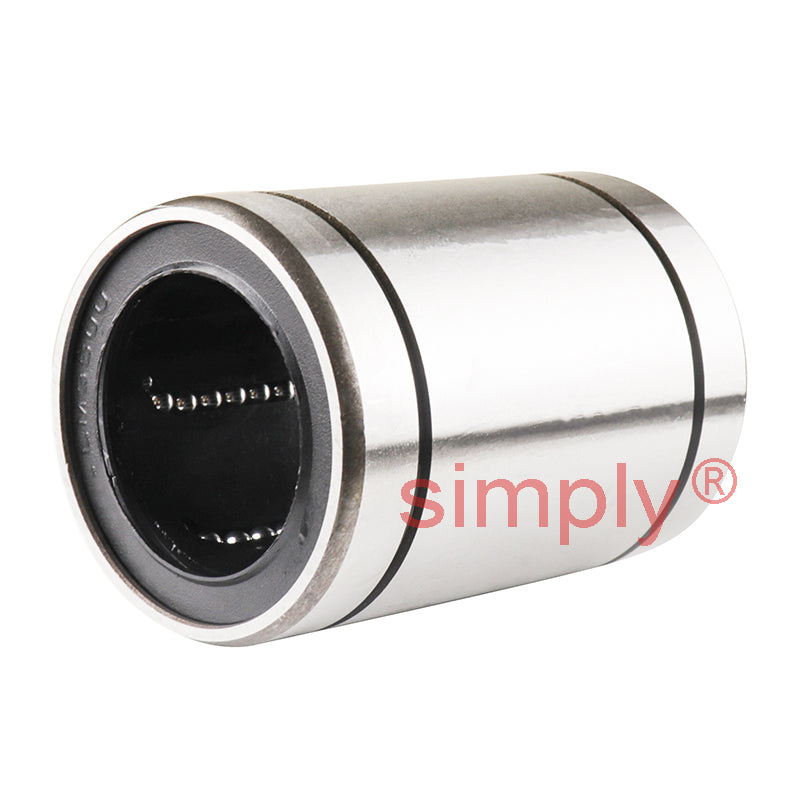

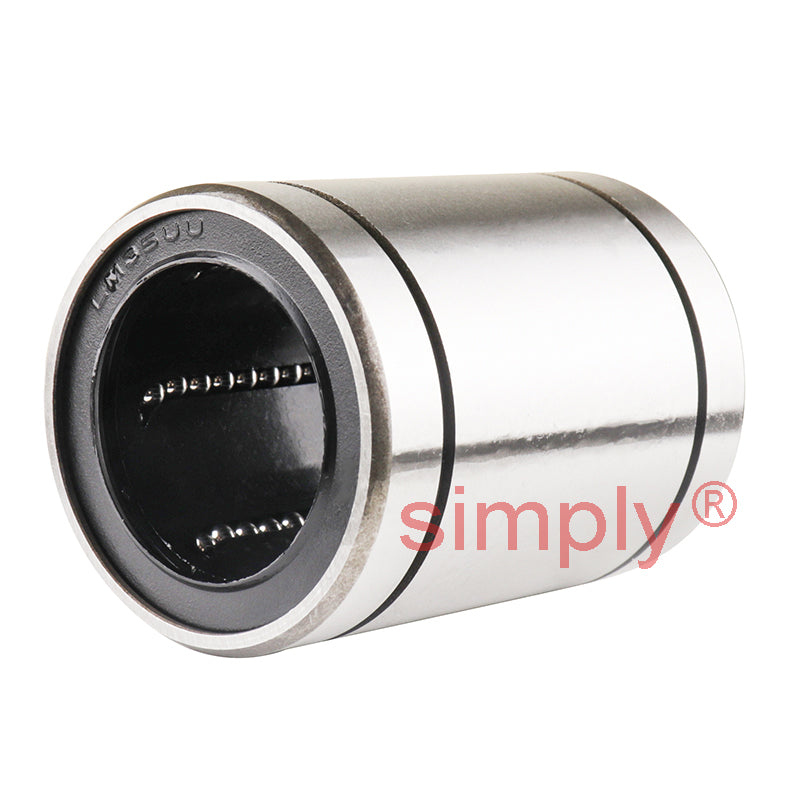

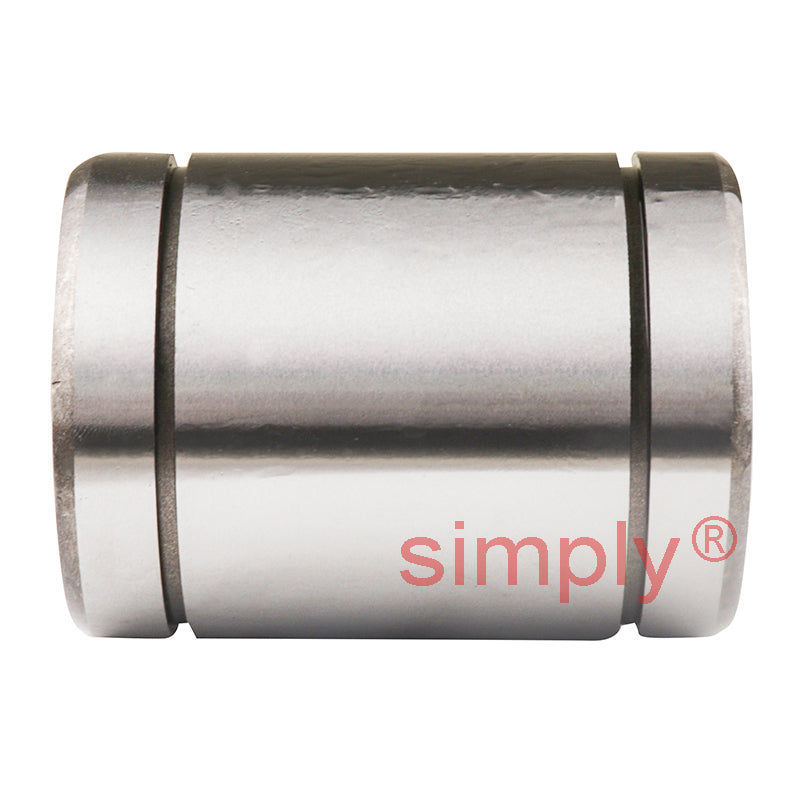

• LM35UU Closed Linear Ball Bushing with Rubber Seals 35x52x70mm
  • LM35UU Closed Linear Ball Bushing with Rubber Seals 35x52x70mm
  • LM35UU Closed Linear Ball Bushing with Rubber Seals 35x52x70mm
1 3

SKU: LM.35.UU.EU

LM35UU Closed Linear Ball Bushing with Rubber Seals 35x52x70mm

LM35UU Closed Linear Ball Bushing with Rubber Seals 35x52x70mm
$37.76 ex VAT
$37.76 ex VAT
Sale Sold out

Equivalent to: SM35GUU LBD35UU LB35NYDD N35VUU L35UU TB35UU KLM35LL SDM35YUU

In stock

Price Break
3+ $17.91
5+ $16.90
10+ $16.70
15+ $16.50
20+ $16.30
30+ $16.10
40+ $15.09
50+ $14.89
60+ $14.69
75+ $14.49
100+ $14.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
L_M_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
52mm
Length:
70mm
Technical
Inside Diameter dr 35mm Tol + 0 to - 8µm
Outside Diameter D 52mm Tol + 0 to - 17µm
Length L 70mm Tol + 0 to - 300µm
W 2.1mm
D1 49mm
Eccentricity 12µm
Dynamic load C 160 kgf
Static load C<sub>o</sub> 315 kgf
Weight 390 g
B 49.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
