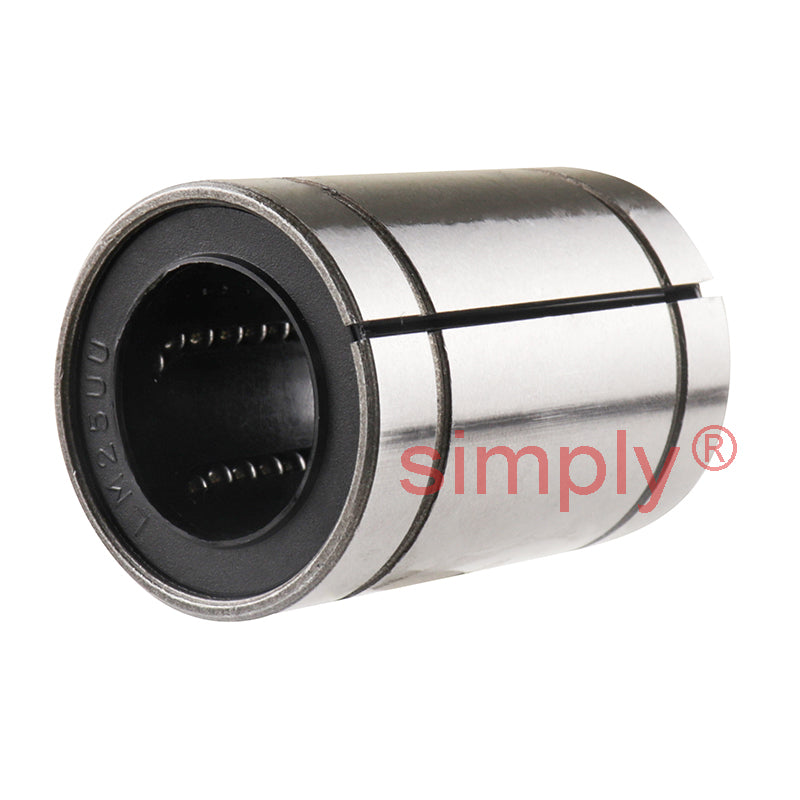

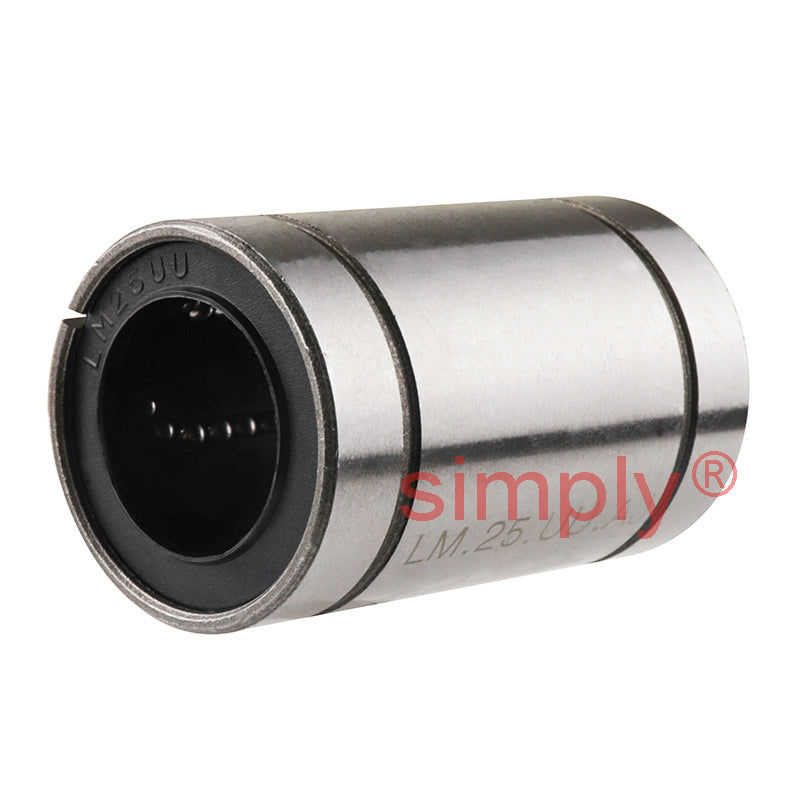

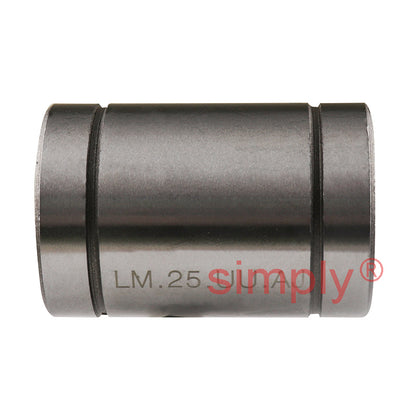

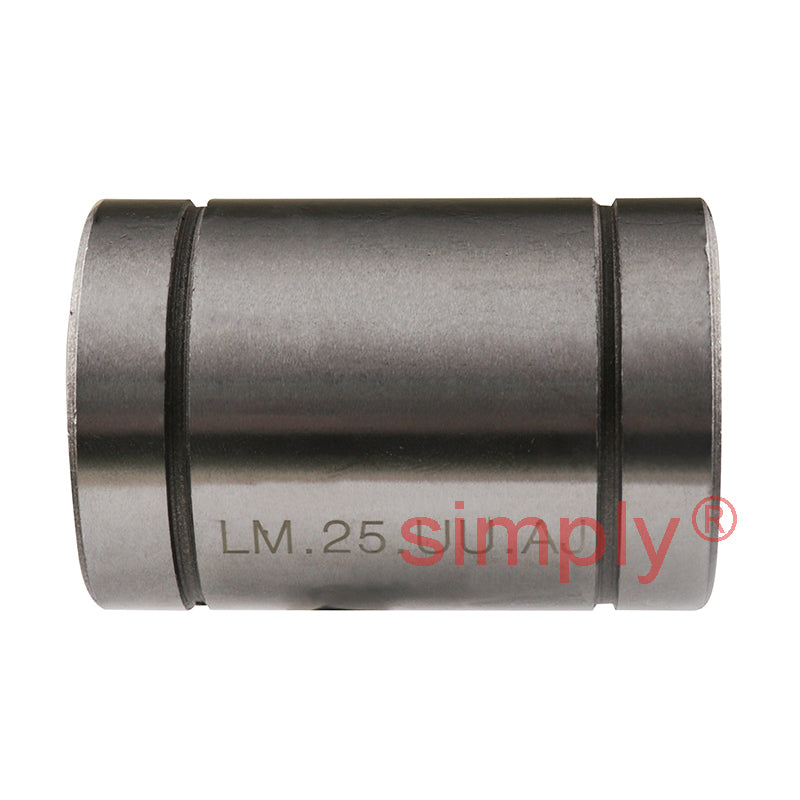

• LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
1 3

SKU: LM.25.UU.AJ.EU

LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm

LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
$28.12 ex VAT
$28.12 ex VAT
Sale Sold out

Equivalent to: SM25GUUAJ LBD25UUAJ LB25NTYDD N25BVUUADJ L25BADJUU TB25ADJUU

In stock

Price Break
3+ $13.34
5+ $12.59
10+ $12.44
15+ $12.29
20+ $12.14
30+ $11.99
40+ $11.24
50+ $11.09
60+ $10.94
75+ $10.79
100+ $10.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMAJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
59mm
Technical
Inside Diameter dr 25mm Tol + 0 to - 7µm
Outside Diameter D 40mm Tol + 0 to - 14µm
Length L 59mm Tol + 0 to - 300µm
W 1.85mm
D1 38mm
h 2mm
Eccentricity 10µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 220 g
B 41mm Tol + 0 to - 300&micro;m
Number of ball rows 6
