SKU: LFTC25A-RHP

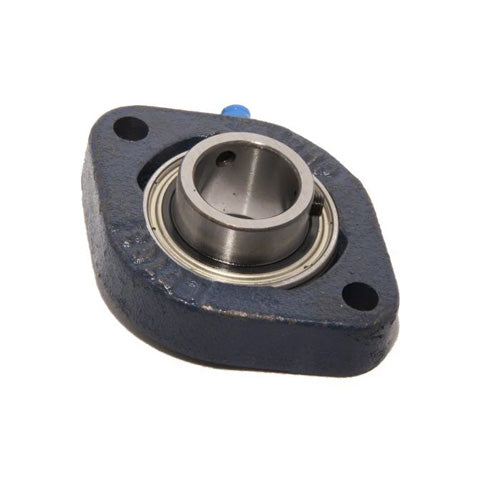

RHP LFTC25A Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25A Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
$70.44
ex VAT
Regular price
Sale price
$70.44
ex VAT
In stock
Price Break
10+
$33.40
20+
$31.52
30+
$31.15
40+
$30.77
50+
$30.40
75+
$30.02
100+
$28.14
200+
$27.77
250+
$27.39
500+
$27.02
1000+
$26.27
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm

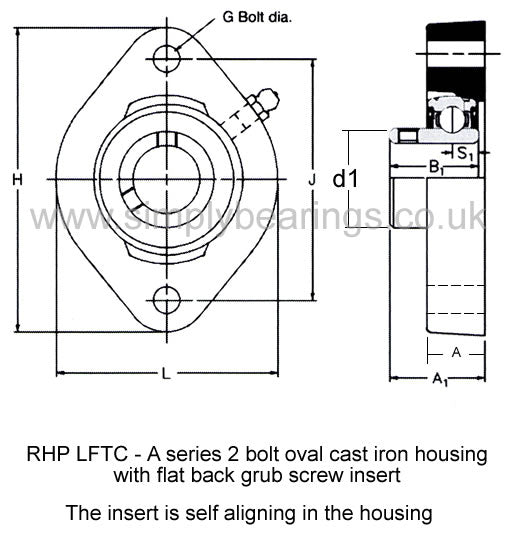

Technical
Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A1 | 29.24mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
