SKU: LFTC16EC-RHP

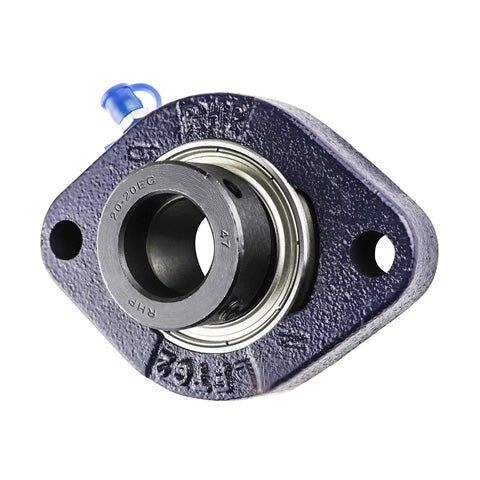

RHP LFTC16EC Two Bolt Oval Cast Iron Flange Housing Bearing 16mm Bore
RHP LFTC16EC Two Bolt Oval Cast Iron Flange Housing Bearing 16mm Bore
Out of stock
Share this product
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- LFTC
- Bolt Hole Centres:
- 63.5mm = 2.5 (2-1/2) inch

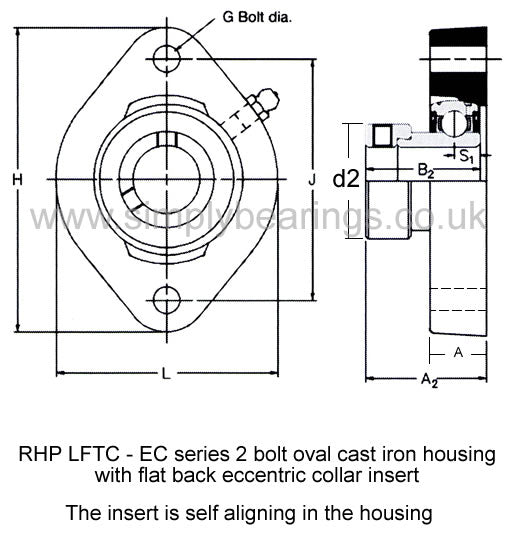

Technical
Technical
| Bore | 16mm |
|---|---|
| L | 2.303 inch |
| H | 3.189 inch |
| J | 2.5 inch |
| G | 0.25 inch |
| A | 0.59 inch |
| A2 | 1.198 inch |
| B2 | 1.124 inch |
| s1 | 0.258 inch |
| d2 | 1.125 inch |
| Dynamic load | 9550 N |
| Static load | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-16ECG+insonly">1217-16ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
