SKU: LCJT45-XL-INA

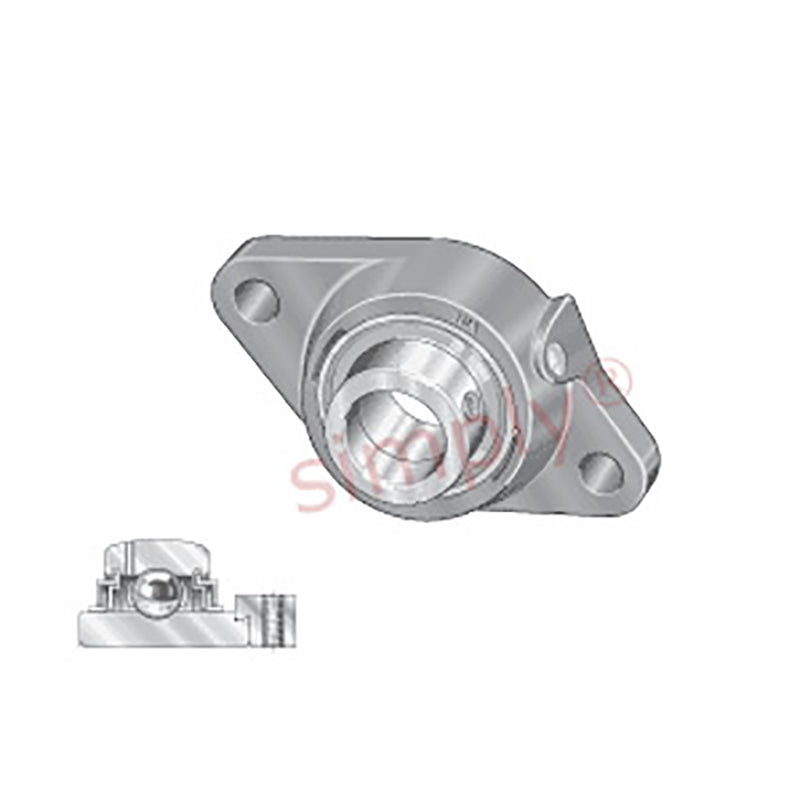

INA LCJT45XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 45mm Bore
INA LCJT45XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 45mm Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a wide operating temperature range of -40 deg C to +180 deg C making it suitable for use in arduous conditions where rapid temperature changes are expected. Benefits: Re-lubricatable, eccentric collar, wide temperature range, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- Wide Temp
- Style:
- LCJT
- Bolt Hole Centres:
- 148.5mm

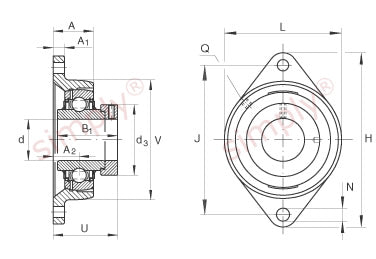

Technical
Technical
| d | 45mm |
|---|---|
| H | 180mm |
| U | 59.1mm |
| A | 35mm |
| A1 | 13mm |
| A2 | 24mm |
| B1 | 56.5mm |
| d3 max | 63mm |
| J | 148.5mm |
| L | 111mm |
| N | 14mm |
| Q | M6mm |
| V | 111mm |
| Mass | 1.81 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 20400 N |
| Designation of housing | CJT09 |
| Designation of bearing | GE45-XL-KLL-B |
