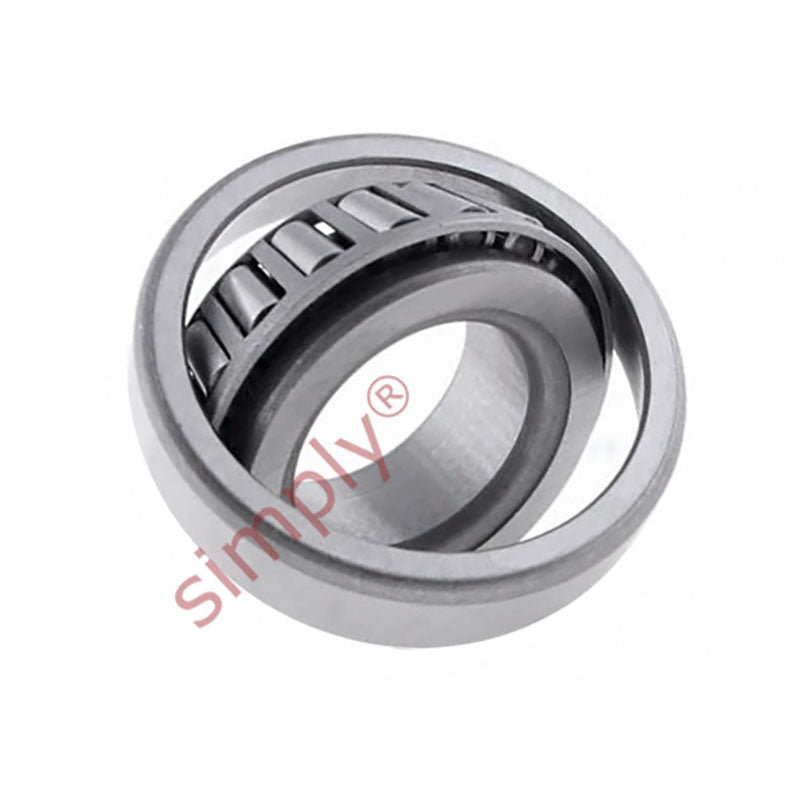

SKF L814749/710/QCL7C Imperial Taper Roller Bearing 3x4.3125x0.75 inches

Name: SKF L814749/710/QCL7C Imperial Taper Roller Bearing 3x4.3125x0.75 inches
Brand: SKF
SKU: L814749/710/QCL7C-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 76.2mm = 3 inch
Outside Diameter:: 109.53mm = 4.312 (4-5/16) inch
Width:: 19.05mm = 0.75 (3/4) inch
Seals / Shields:: None

Technical

d	76.2mm
D	109.538mm
T	19.05mm
Dynamic load	58.3 kN
Static load	102 kN
Fatigue load limit Pu	11 kN
Reference speed	4000 rpm
Limiting speed	6000 rpm
Weight	0.6 kg
d1	94.8mm
B	19.05mm
C	15.083mm
r1r2 min	1.5mm
r3r4 min	1.5mm
a	24mm
da max	85mm
db min	85mm
Da min	98mm
Da max	100.5mm
Db min	105mm
Ca min	3mm
Cb min	3.5mm
ra max	1.5mm
rb max	1.5mm
Calculation factor e	0.5
Calculation factor Y	1.2
Calculation factor Y0	0.7
