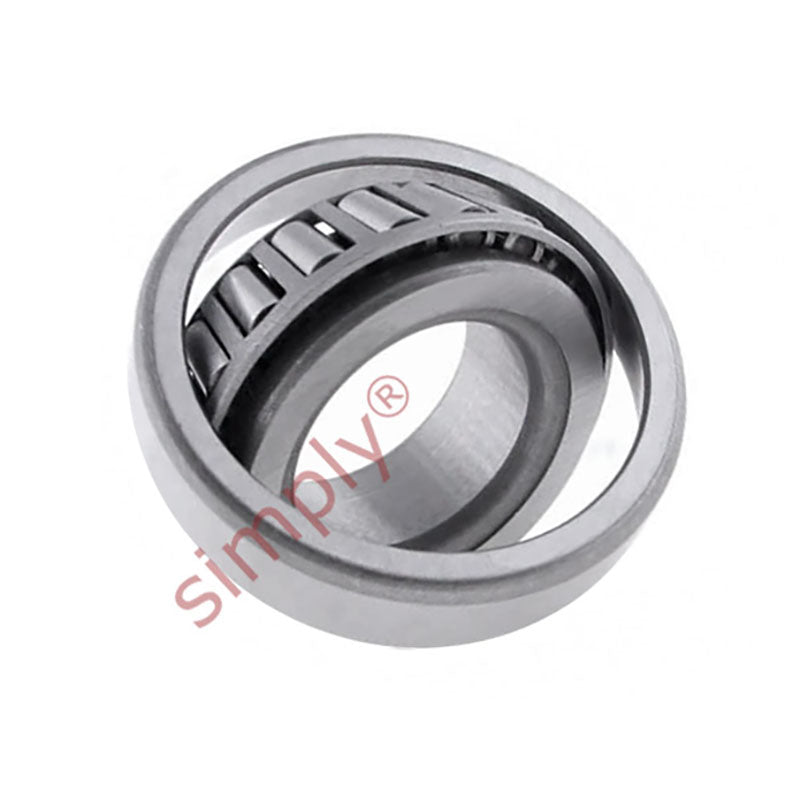

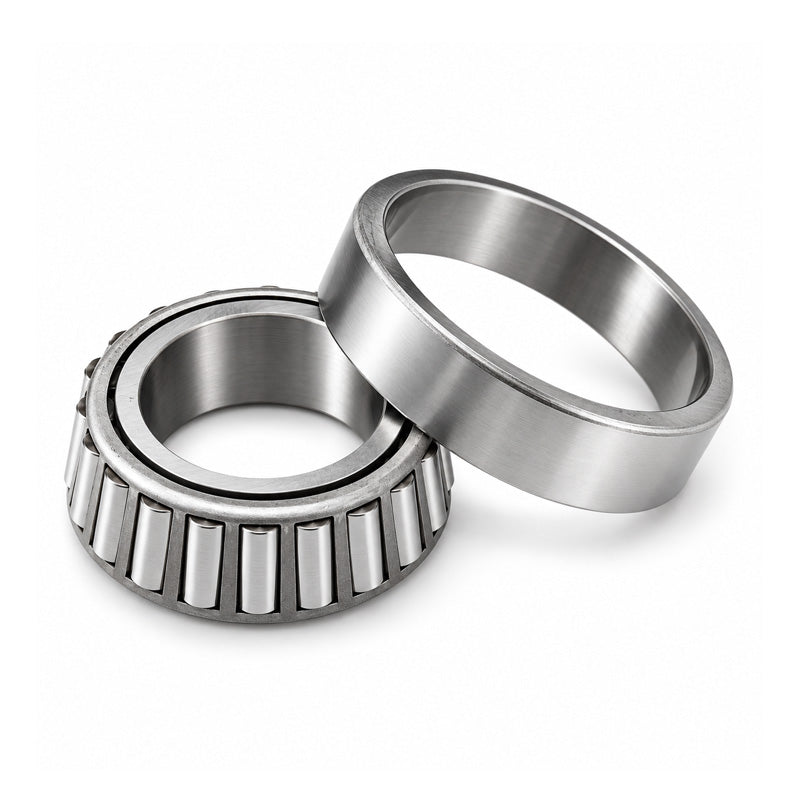

• SKF L68149/110/Q Imperial Taper Roller Bearing 1.3775x2.328x0.625 inches
1 1

SKU: L68149/110/Q-SKF

SKF L68149/110/Q Imperial Taper Roller Bearing 1.3775x2.328x0.625 inches

SKF L68149/110/Q Imperial Taper Roller Bearing 1.3775x2.328x0.625 inches
$51.22 ex VAT
$51.22 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
34.99mm = 1.378 inch
Outside Diameter:
59.13mm = 2.328 (2-21/64) inch
Width:
15.88mm = 0.625 (5/8) inch
Seals / Shields:
None
Technical
d 34.988mm
D 59.131mm
T 15.875mm
Dynamic load 33 kN
Static load 44 kN
Fatigue load limit Pu 4.5 kN
Reference speed 8000 rpm
Limiting speed 12000 rpm
Weight 0.17 kg
d1 48.4mm
B 16.764mm
C 11.938mm
r1r2 min 3.5mm
r3r4 min 1.3mm
a 13mm
da max 41mm
db min 46mm
Da min 52mm
Da max 53.5mm
Db min 56mm
Ca min 3mm
Cb min 3.5mm
ra max 3mm
rb max 1.3mm
Calculation factor e 0.43
Calculation factor Y 1.4
Calculation factor Y0 0.8
