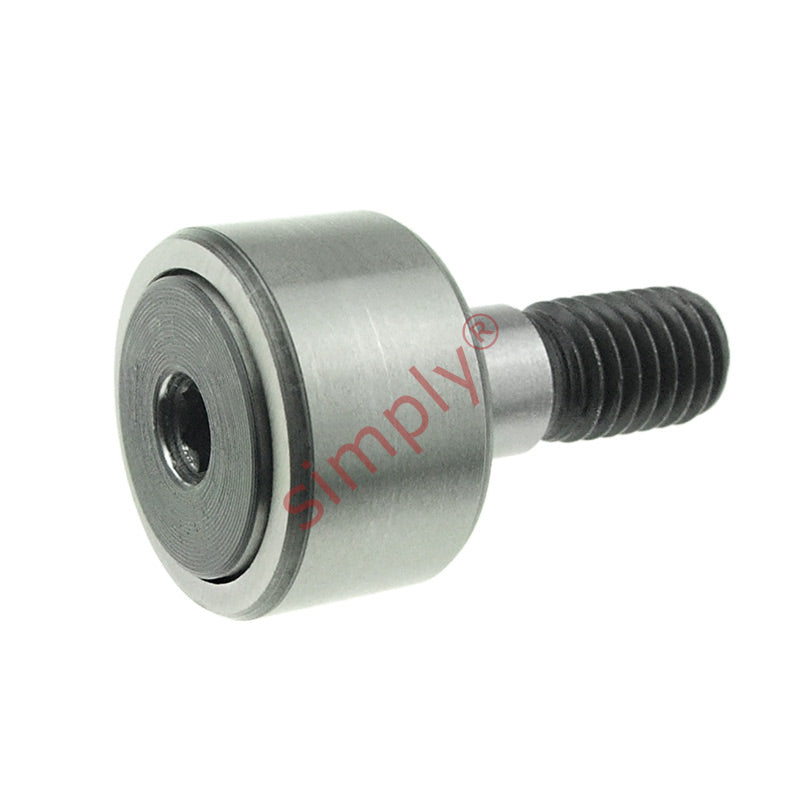

• Budget KR40PPA Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
1 1

SKU: KR40PPA-EU

Budget KR40PPA Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread

Budget KR40PPA Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
$67.30 ex VAT
$67.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $31.91
19+ $30.12
29+ $29.76
39+ $29.40
49+ $29.04
74+ $28.69
99+ $26.89
199+ $26.53
249+ $26.18
499+ $25.82
999+ $25.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
40mm
Width:
20mm
Pitch:
M18x1.5
Technical
D 40mm
C 20mm
d (Stud Diameter) 18mm
B 58mm
B1 36.5mm
B2 8mm
C1 0.8mm
d1 31.5mm
G M18x1.5
G1 19mm
M1 3mm
r min 1mm
SW 8mm
Dynamic load 10500 N
Static load 14600 N
Fatigue load limit Pu 1730 N
Radial dynamic load 12500 N
Radial static load 18000 N
Speed rating 2900 rpm
Weight 250 g
