SKU: KR40PP-EU
Budget KR40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
- Regular price
- $28.29 ex VAT
- Sale price
- $28.29
- Regular price
-
In stock
Quantity Price Breaks
10
$25.18
19
$23.76
29
$23.48
39
$23.20
49
$22.91
74
$22.63
99
$21.22
199
$20.93
249
$20.65
499
$20.37
999
$19.80
SKU:
KR40PP-EU
Budget KR40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
- Regular price
- $28.29 ex VAT
- Sale price
- $28.29
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |

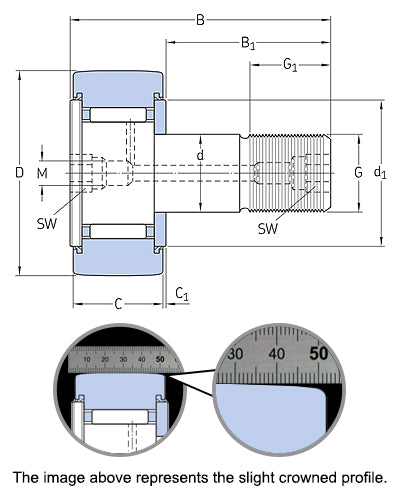

Technical
| D | = | 40mm |
| C | = | 20mm |
| d (Stud Diameter) | = | 18mm |
| B | = | 58mm |
| B1 | = | 36.5mm |
| B2 | = | 8mm |
| C1 | = | 0.8mm |
| d1 | = | 32mm |
| G | = | M18x1.5 |
| G1 | = | 19mm |
| M | = | 6mm |
| M1 | = | 3mm |
| r min | = | 1mm |
| Dynamic load | = | 10500 N |
| Static load | = | 14600 N |
| Fatigue load limit Pu | = | 1730 N |
| Radial dynamic load | = | 12500 N |
| Radial static load | = | 18000 N |
| Speed rating | = | 2900 rpm |
| Weight | = | 250 g |
