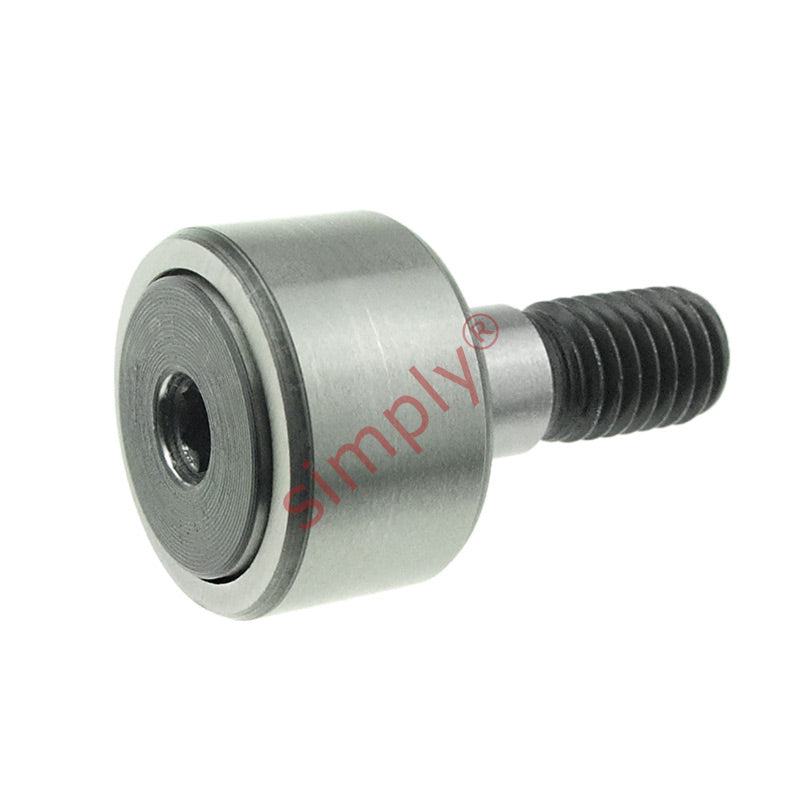

Budget KR40 Crowned Cam Follower 40x20x18 M18x1.5 Thread
Budget KR40 Crowned Cam Follower 40x20x18 M18x1.5 Thread
Out of stock
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 40mm
- Width:
- 20mm
- Pitch:
- M18x1.5
Technical
Technical
| D | 40mm |
|---|---|
| C | 20mm |
| d (Stud Diameter) | 18mm |
| B | 58mm |
| B1 | 36.5mm |
| B2 | 8mm |
| C1 | 0.8mm |
| d1 | 32mm |
| G | M18x1.5 |
| G1 | 19mm |
| M | 6mm |
| M1 | 3mm |
| r min | 1mm |
| Dynamic load | 10500 N |
| Static load | 14600 N |
| Fatigue load limit Pu | 1730 N |
| Radial dynamic load | 12500 N |
| Radial static load | 18000 N |
| Speed rating | 2900 rpm |
| Weight | 250 g |
