• Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
1 1

SKU: KR22PPA-IKO

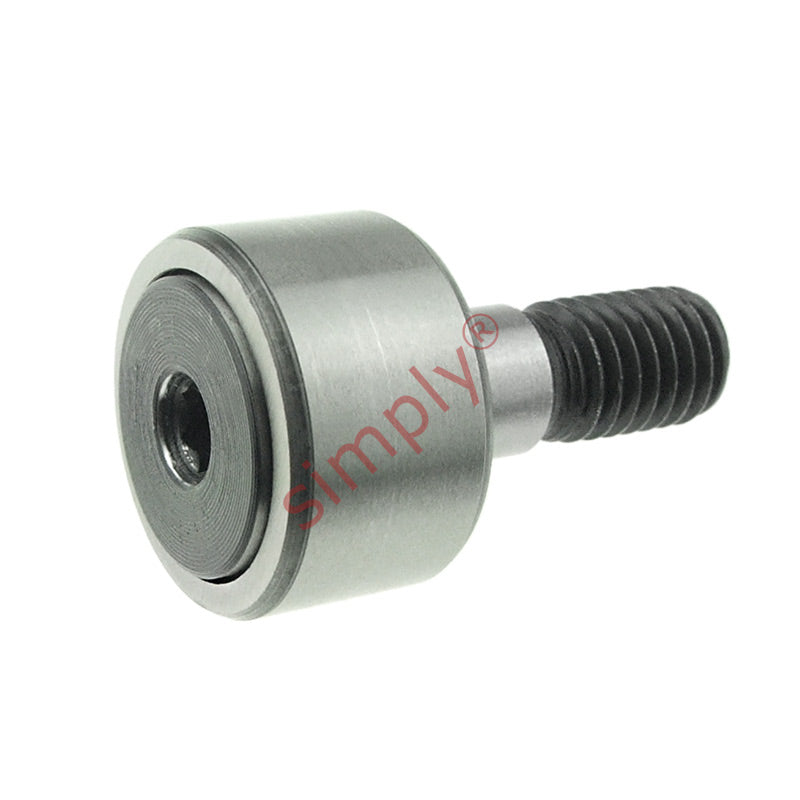

Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread

Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
$76.56 ex VAT
$76.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $36.31
19+ $34.27
29+ $33.86
39+ $33.45
49+ $33.04
74+ $32.64
99+ $30.60
199+ $30.19
249+ $29.78
499+ $29.37
999+ $28.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
22mm
Width:
12mm
Pitch:
M10x1.25

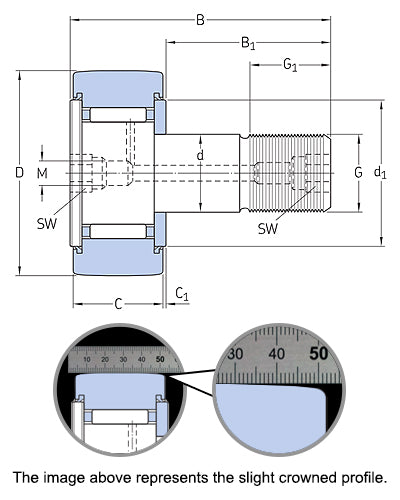

Technical
D 22mm
C 12mm
d (Stud Diameter) 10mm
B 36mm
B1 23mm
C1 0.6mm
d1 17.5mm
G M10x1.25mm
G1 12mm
r min 0.3mm
SW 5mm
Dynamic load 4400 N
Static load 5000 N
Fatigue load limit Pu 560 N
Radial dynamic load 4250 N
Radial static load 6000 N
Speed rating 8000 rpm
Weight 43 g
