SKU: KR22-EU

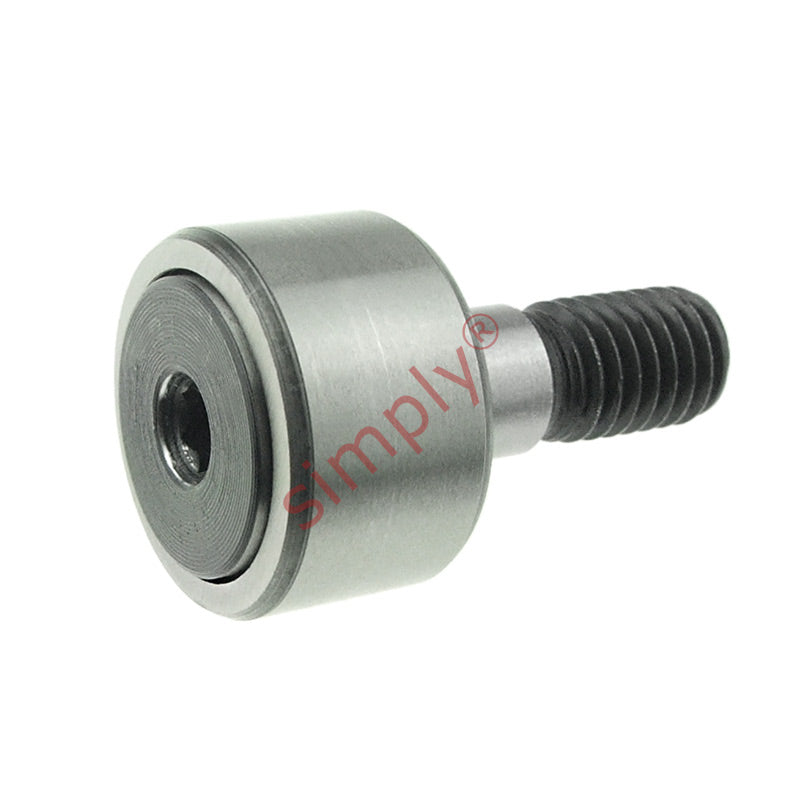

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- $40.27 ex VAT
- Sale price
- $40.27
- Regular price
-
In stock
Quantity Price Breaks
10
$35.84
19
$33.83
29
$33.42
39
$33.02
49
$32.62
74
$32.22
99
$30.20
199
$29.80
249
$29.40
499
$28.99
999
$28.19
SKU:
KR22-EU
Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- $40.27 ex VAT
- Sale price
- $40.27
- Regular price
-
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |

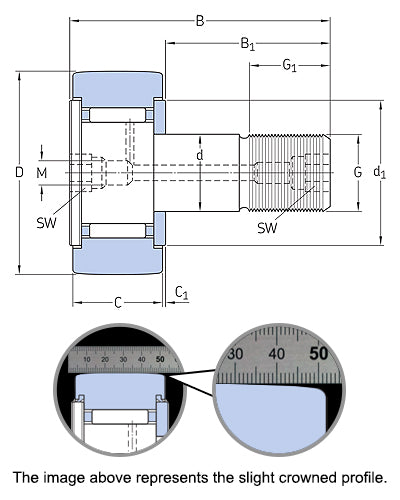

Technical
| D | = | 22mm |
| C | = | 12mm |
| d (Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17mm |
| G | = | M10x1 |
| G1 | = | 12mm |
| M | = | 4mm |
| r min | = | 0.3mm |
| Dynamic load | = | 4400 N |
| Static load | = | 5000 N |
| Fatigue load limit Pu | = | 560 N |
| Radial dynamic load | = | 4250 N |
| Radial static load | = | 6000 N |
| Speed rating | = | 8000 rpm |
| Weight | = | 44 g |
