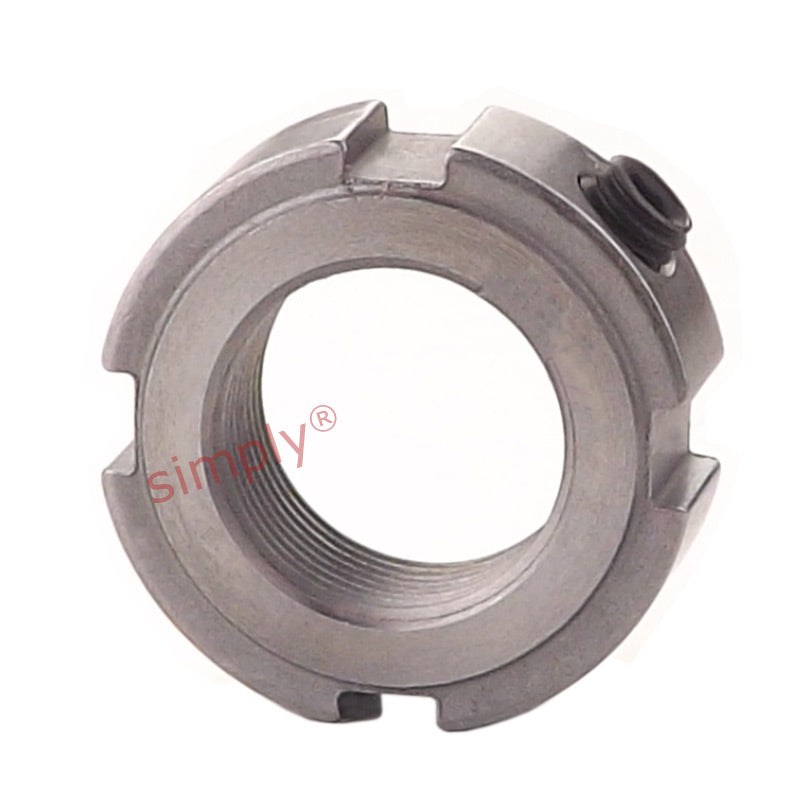

• SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
1 1

SKU: KMK20-SKF

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
$219.87 ex VAT
$219.87 ex VAT
Sale Sold out

Low stock

Price Break
10+ $104.26
19+ $98.41
29+ $97.23
39+ $96.06
49+ $94.89
74+ $93.72
99+ $87.86
199+ $86.69
249+ $85.52
499+ $84.35
999+ $82.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M100x2
Technical
d1 122mm
d3 130mm
B 20mm
b 10mm
h 4mm
Axial load capacity 255 kN
Loosening torque 472 Nm
Weight 0.8 kg
G M100x2
Designation KMK20
Locking device HN20
Grub screw M10
Grub screw torque 35 Nm
