SKU: KM8-SKF

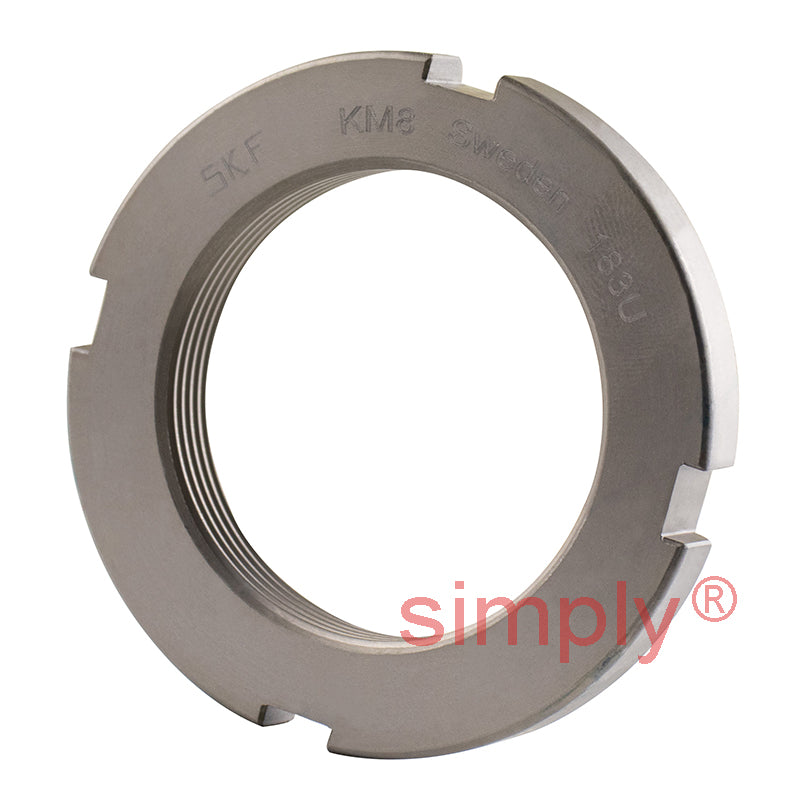

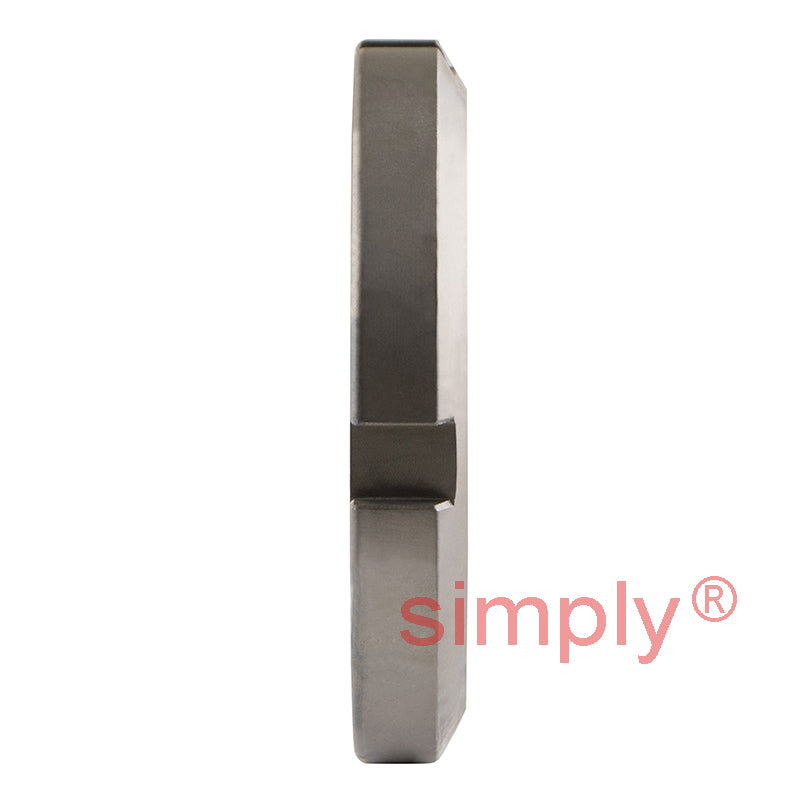

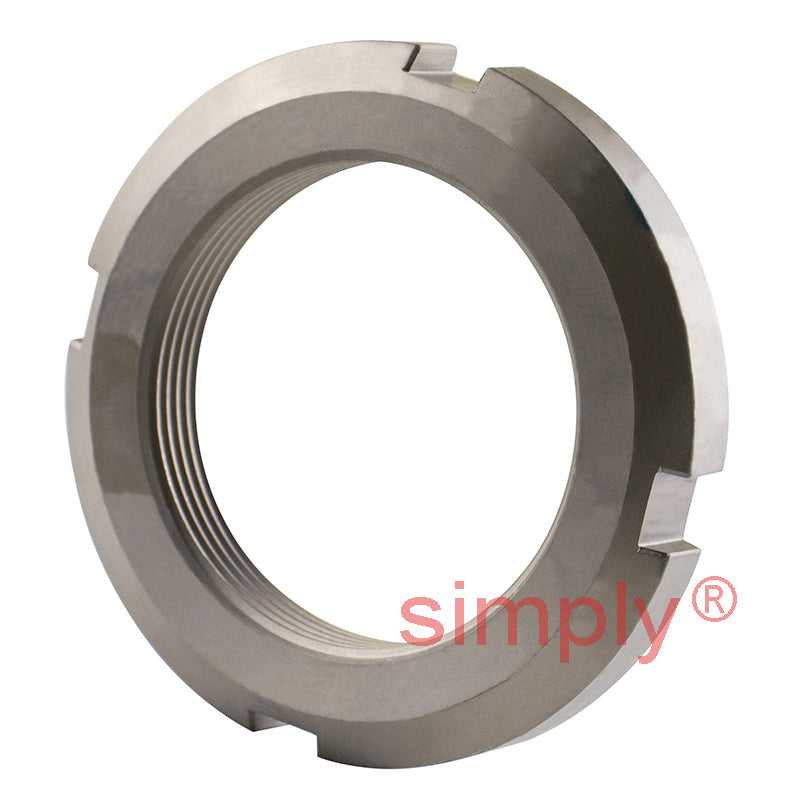

SKF KM8 Lock Nut (Lock Washer Type) M40x1.5mm
SKF KM8 Lock Nut (Lock Washer Type) M40x1.5mm
Regular price
$29.49
ex VAT
Regular price
Sale price
$29.49
ex VAT
Equivalent to: KM08
In stock
Price Break
10+
$14.00
19+
$13.22
29+
$13.06
39+
$12.90
49+
$12.74
74+
$12.59
99+
$11.80
199+
$11.64
249+
$11.49
499+
$11.33
999+
$11.01
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5

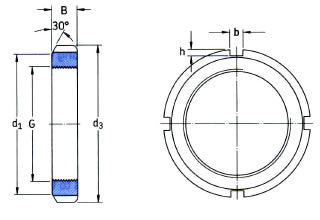

Technical
Technical
| d1 | 50mm |
|---|---|
| d3 | 58mm |
| B | 9mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 62 kN |
| Weight | 0.078 kg |
| G | M40x1.5 |
| Designation | KM8 |
| Washer | MB8 |
| Spanner | HN8 |
