SKU: KBZ16-OP-INA

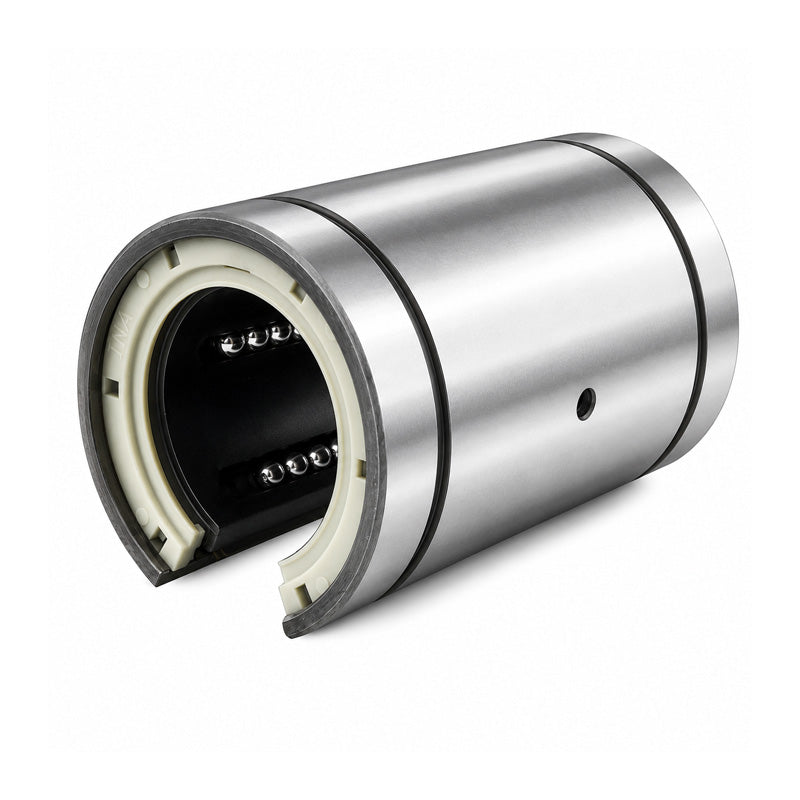

INA KBZ16OP Imperial Open Linear Ball Bushing 1x1-9/16x2-1/4 inch - Allow 2-3 Days
INA KBZ16OP Imperial Open Linear Ball Bushing 1x1-9/16x2-1/4 inch - Allow 2-3 Days
Regular price
$218.05
ex VAT
Regular price
Sale price
$218.05
ex VAT
In stock
Price Break
3+
$103.40
5+
$97.59
10+
$96.43
15+
$95.27
20+
$94.11
30+
$92.94
40+
$87.14
50+
$85.97
60+
$84.81
75+
$83.65
100+
$81.33
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBZ..-OP Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.40mm = 1 inch
- Outside Diameter:
- 39.69mm = 1-9/16 inch
- Width:
- 57.15mm = 2-1/4 inch
Technical
Technical
| d | 1 inch |
|---|---|
| D | 1-9/16 inch |
| C | 2-1/4 inch |
| A6 | 0.563 inch |
| C1 | 1.755 inch |
| C7 | 0.068 inch |
| D1 | 1.469 inch |
| α | 50° |
| Mass | 0.37 lbs |
| Number of rows of balls | 5 |
| Basic dynamic load rating C | 220 lbf |
| Basic static load rating C0 | 353 lbf |
