SKU: KBZ04-PP-INA

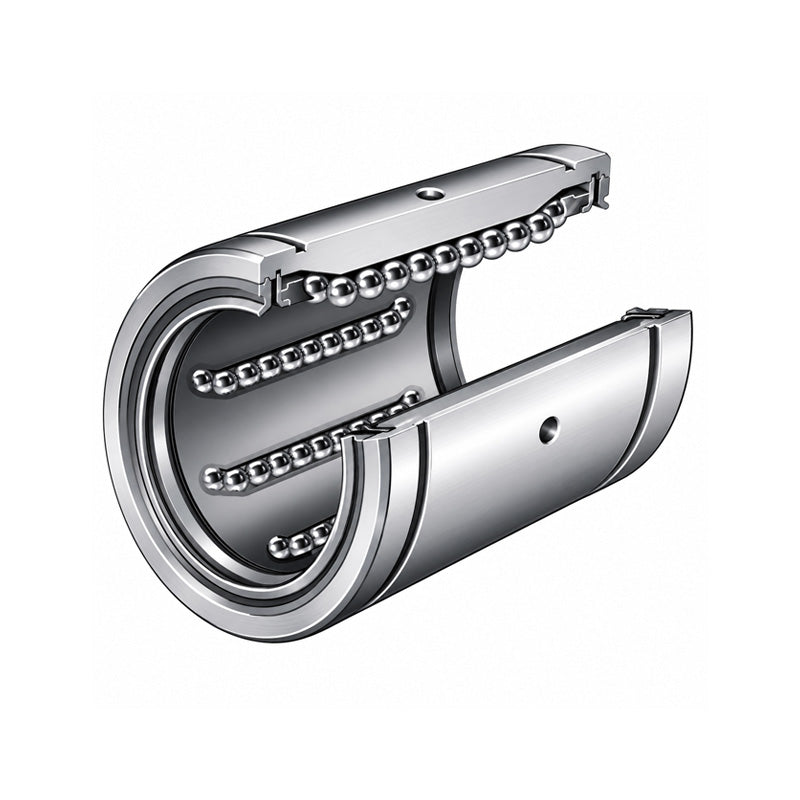

INA KBZ04PP Imperial Closed Linear Ball Bushing with Contact Seals 1/4x1/2x3/4 inch
INA KBZ04PP Imperial Closed Linear Ball Bushing with Contact Seals 1/4x1/2x3/4 inch
Out of stock
Description
Description
|
INA KBZ..-PP Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 6.35mm = 1/4 inch
- Outside Diameter:
- 12.70mm = 1/2 inch
- Width:
- 19.05mm = 3/4 inch
Technical
Technical
| d | 1/4 inch |
|---|---|
| D | 1/2 inch |
| C | 3/4 inch |
| C1 | 0.511 inch |
| C7 | 0.039 inch |
| D1 | 0.469 inch |
| Mass | 0.02 lbs |
| Number of rows of balls | 4? |
| Basic dynamic load rating C | 46 lbf |
| Basic static load rating C0 | 60 lbf |
