SKU: KBS30-PP-AS-INA

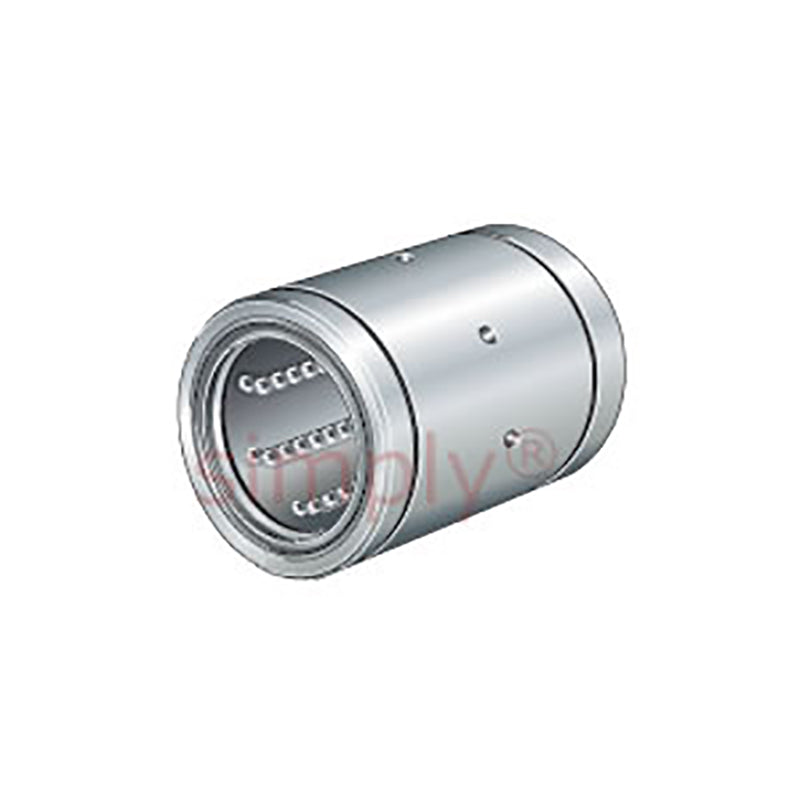

INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
$201.97
ex VAT
Regular price
Sale price
$201.97
ex VAT
In stock
Price Break
3+
$95.77
5+
$90.39
10+
$89.32
15+
$88.24
20+
$87.16
30+
$86.09
40+
$80.71
50+
$79.63
60+
$78.56
75+
$77.48
100+
$75.33
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical

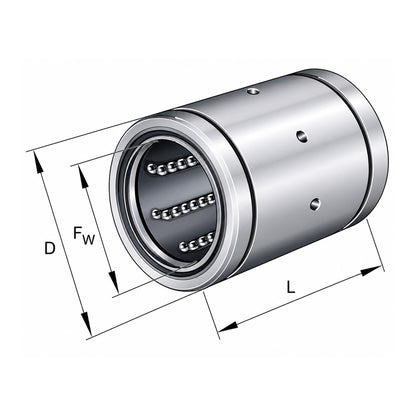

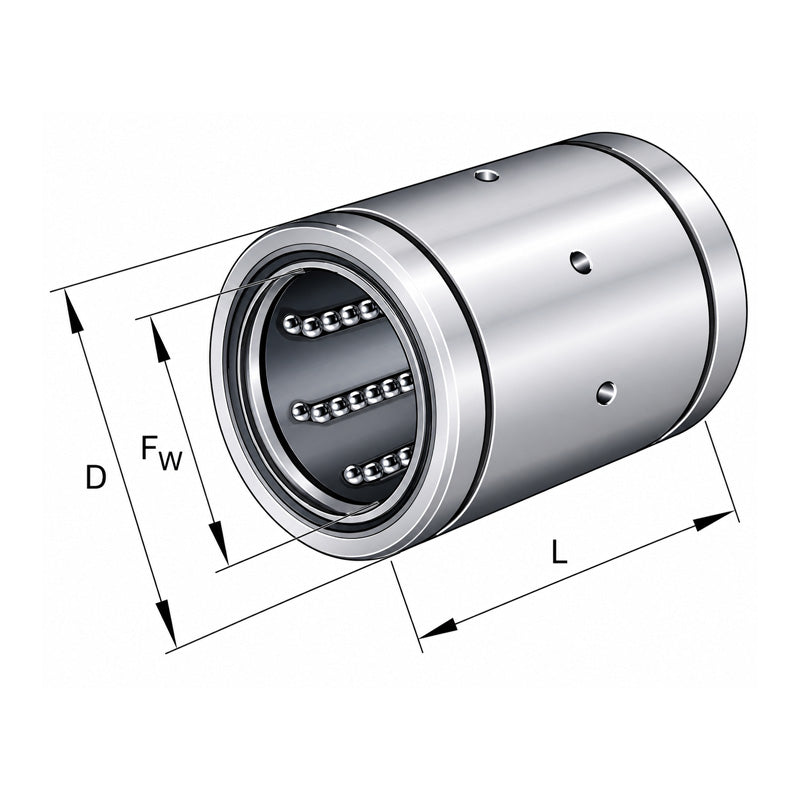

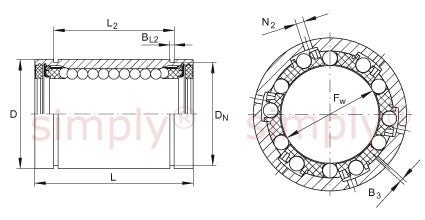

| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
