SKU: KBS16-PP-INA

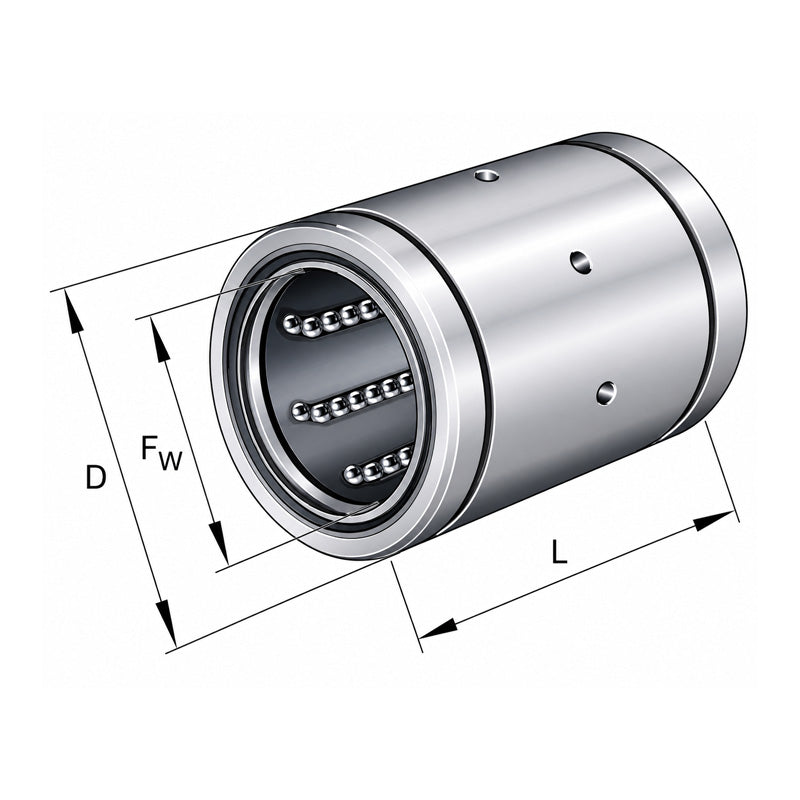

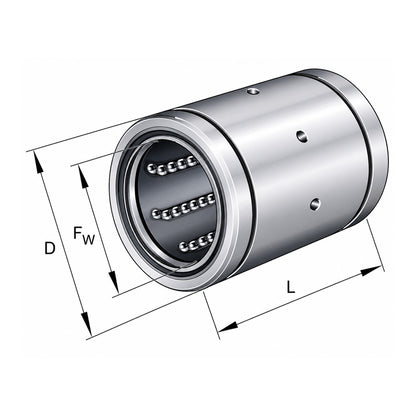

INA KBS16PP Linear Ball Bushing with Contact Seals 16x26x36mm
INA KBS16PP Linear Ball Bushing with Contact Seals 16x26x36mm
Regular price
$108.93
ex VAT
Regular price
Sale price
$108.93
ex VAT
In stock
Price Break
3+
$51.66
5+
$48.75
10+
$48.17
15+
$47.59
20+
$47.01
30+
$46.43
40+
$43.53
50+
$42.95
60+
$42.37
75+
$41.79
100+
$40.63
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm

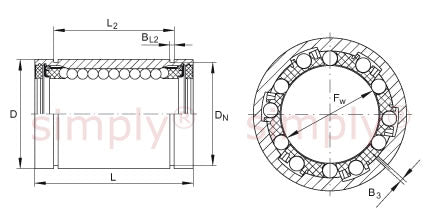

Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| B3 | 1mm |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
