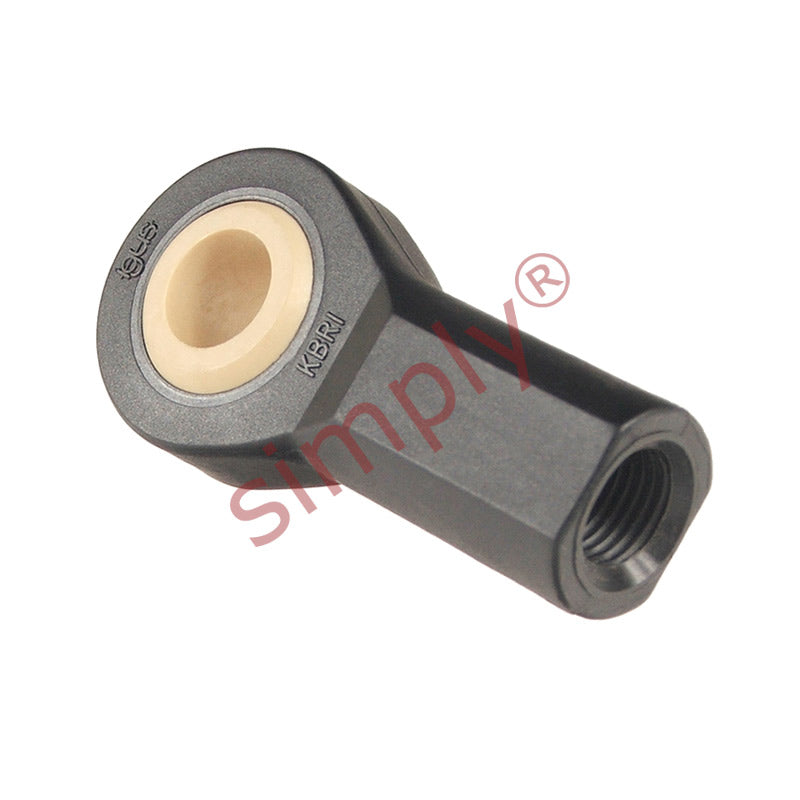

• igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread
1 1

SKU: KBRI-06

igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread

igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread
$17.42 ex VAT
$17.42 ex VAT
Sale Sold out

In stock

Price Break
4+ $8.26
9+ $7.79
19+ $7.70
29+ $7.61
39+ $7.51
49+ $7.42
59+ $6.96
69+ $6.86
79+ $6.77
89+ $6.68
99+ $6.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
3/8-24
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
9.53mm = 0.375 (3/8) inch

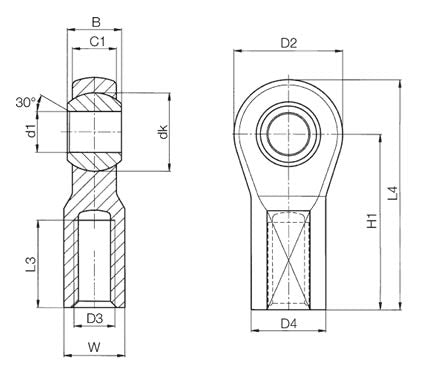

Technical
d1 0.375 inch
d2 1 inch
d3 3/8-24 inch
d4 0.687 inch
C1 0.394 inch
B 0.5 inch
h1 1.625 inch
l3 0.812 inch
l4 2.125 inch
W 0.562 inch
Max pivot angle 22°
Max static tensile strength (short term) 2000 N
Max static tensile strength (long term) 1000 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 0.568 inch
Max torque outside thread 7 Nm
Max torque through ball 15 Nm
Weight 12.6 g
