SKU: KBRI-03

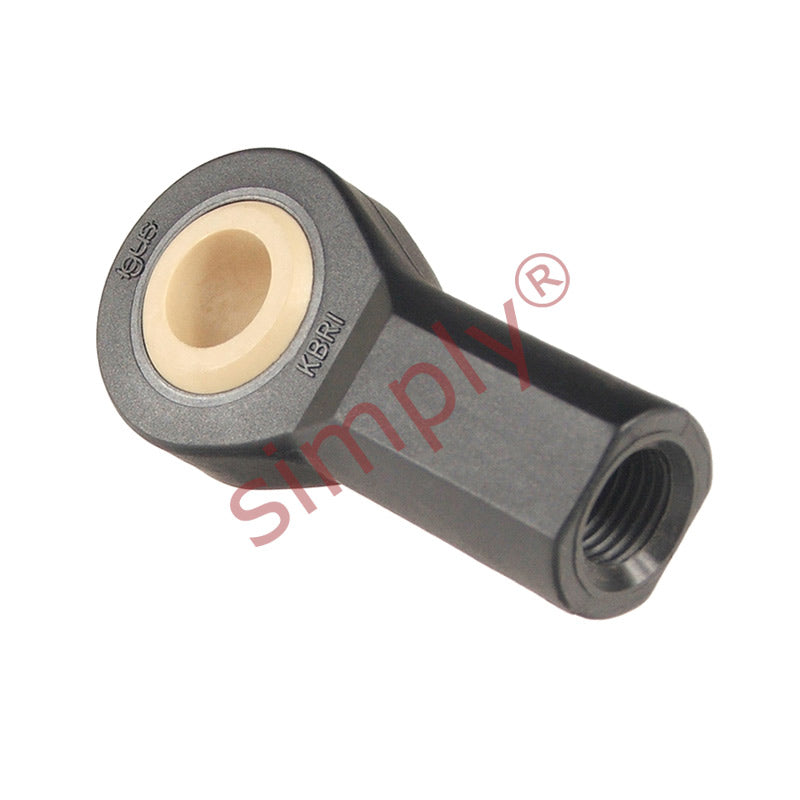

igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread
igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread
Regular price
$16.07
ex VAT
Regular price
Sale price
$16.07
ex VAT
In stock
Price Break
4+
$7.62
9+
$7.19
19+
$7.10
29+
$7.02
39+
$6.93
49+
$6.85
59+
$6.42
69+
$6.33
79+
$6.25
89+
$6.16
99+
$5.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KBRI_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- 10-32
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 4.76mm = 0.187 (3/16) inch
Technical
Technical
| d1 | 0.187 inch |
|---|---|
| d2 | 0.625 inch |
| d3 | 10-32 inch |
| d4 | 0.406 inch |
| C1 | 0.246 inch |
| B | 0.312 inch |
| h1 | 1.062 inch |
| l3 | 0.5 inch |
| l4 | 1.374 inch |
| W | 0.312 inch |
| Max pivot angle | 25° |
| Max static tensile strength (short term) | 900 N |
| Max static tensile strength (long term) | 450 N |
| Max radial load (short term) | 300 N |
| Max radial load (long term) | 150 N |
| Min thread depth | 0.35 inch |
| Max torque outside thread | 2 Nm |
| Max torque through ball | 3 Nm |
| Weight | 3.3 g |
