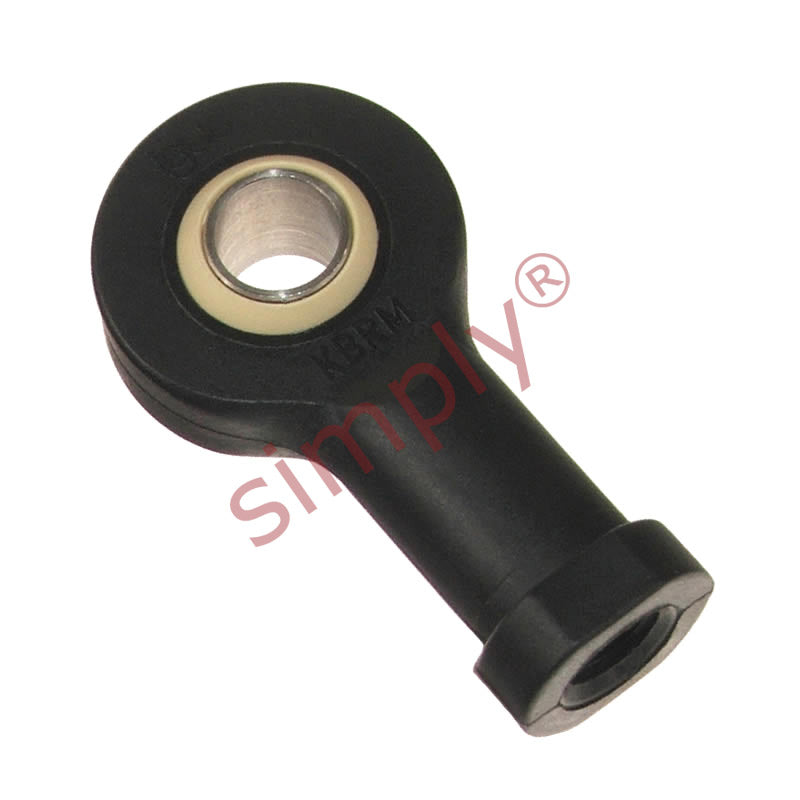

• igubal KBLM06MH Left Hand Female Plastic Rod End 6mm Bore M6 Thread with Metal Insert
1 1

SKU: KBLM-06.MH

igubal KBLM06MH Left Hand Female Plastic Rod End 6mm Bore M6 Thread with Metal Insert

igubal KBLM06MH Left Hand Female Plastic Rod End 6mm Bore M6 Thread with Metal Insert
$25.94 ex VAT
$25.94 ex VAT
Sale Sold out

In stock

Price Break
4+ $12.30
9+ $11.61
19+ $11.47
29+ $11.34
39+ $11.20
49+ $11.06
59+ $10.37
69+ $10.23
79+ $10.09
89+ $9.95
99+ $9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M6
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
6mm
Technical
d1 6mm
d2 20mm
d3 M6
d4 10mm
d5 13mm
C1 7mm
B 9mm
h1 30mm
l3 12mm
l4 40mm
W SW11
Max pivot angle 29°
Max static tensile strength (short term) 1400 N
Max static tensile strength (long term) 700 N
Max radial load (short term) 400 N
Max radial load (long term) 200 N
Min thread depth 8mm
Max torque strength inside thread 1.5 Nm
Max torque through ball (standard) 10 Nm
Max torque through ball (MH) 15 Nm
Weight 4.7 g
