SKU: KB12-PP-AS-INA

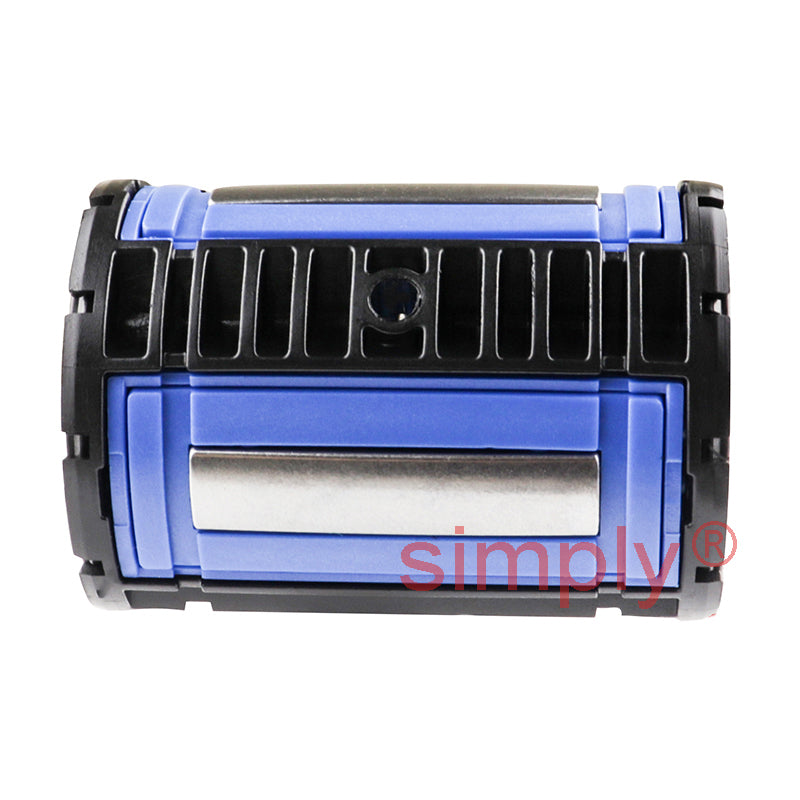

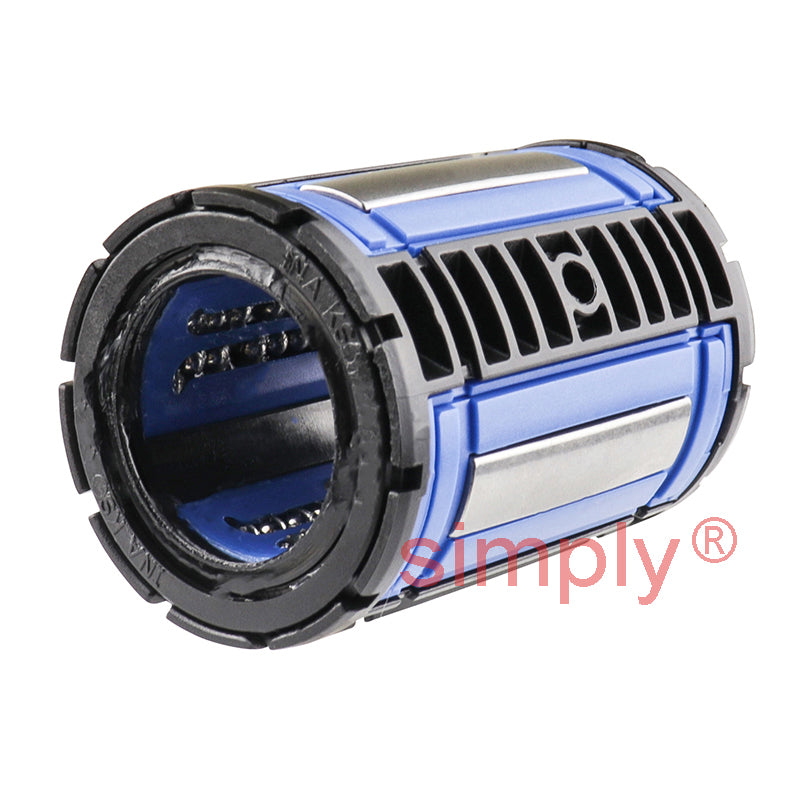

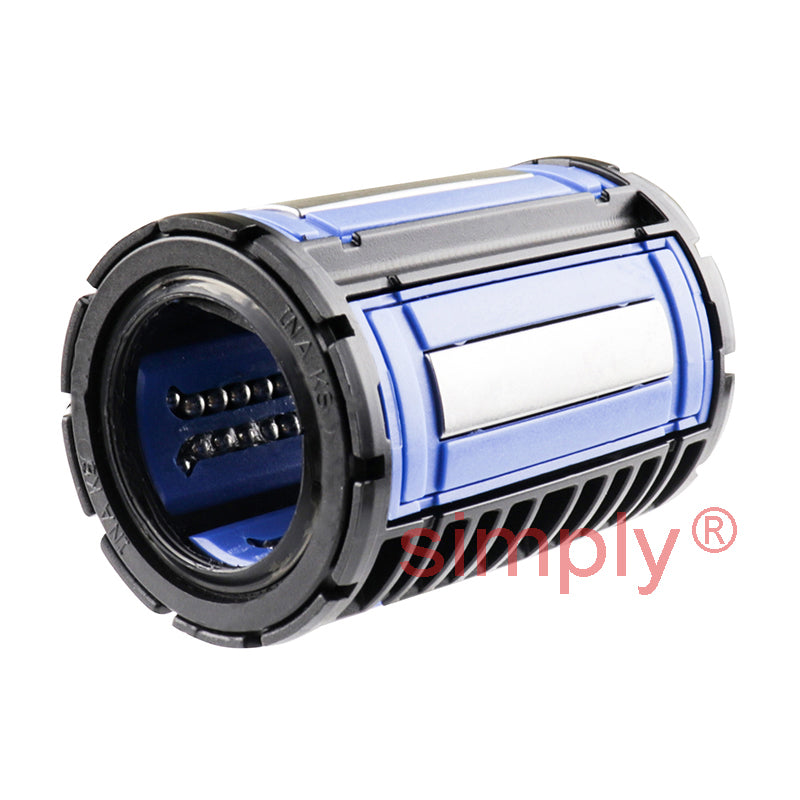

INA KB12PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 12x22x32mm
INA KB12PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 12x22x32mm
Regular price
$105.18
ex VAT
Regular price
Sale price
$105.18
ex VAT
In stock
Price Break
3+
$49.88
5+
$47.07
10+
$46.51
15+
$45.95
20+
$45.39
30+
$44.83
40+
$42.03
50+
$41.47
60+
$40.91
75+
$40.35
100+
$39.23
Quantity
Couldn't load pickup availability
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 32mm
Technical
Technical

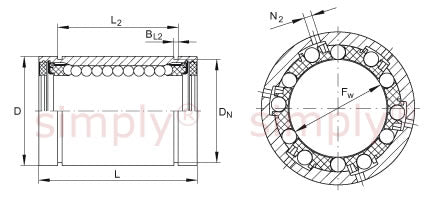

| Fw | 12mm |
|---|---|
| D | 22mm |
| L | 32mm |
| Numer of rows of balls | 5 |
| BL2 | 1.3mm |
| DN | 21mm |
| L2 | 22.6mm |
| N2 | 1.5mm |
| Mass | 0.04 kg |
| Basic dynamic load rating C min | 540 N |
| Basic static load rating C0 min | 385 N |
| Basic dynamic load rating C max | 640 N |
| Basic static load rating C0 max | 570 N |
