SKU: KARM-10.CL

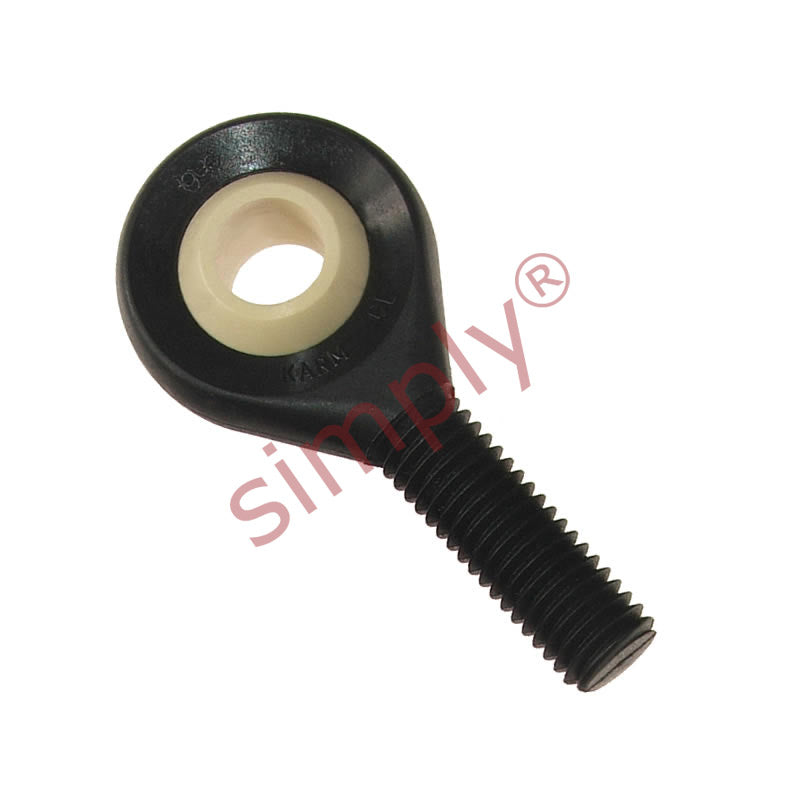

igubal KARM10CL Right Hand Male Plastic Rod End 10mm Bore M10 Thread
igubal KARM10CL Right Hand Male Plastic Rod End 10mm Bore M10 Thread
Regular price
$25.02
ex VAT
Regular price
Sale price
$25.02
ex VAT
In stock
Price Break
4+
$11.86
9+
$11.20
19+
$11.06
29+
$10.93
39+
$10.80
49+
$10.66
59+
$10.00
69+
$9.86
79+
$9.73
89+
$9.60
99+
$9.33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KARM_CL_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
Technical
Technical

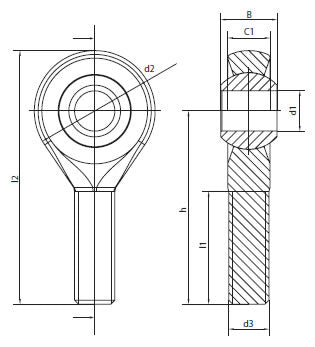

| d1 | 10mm |
|---|---|
| d2 | 30mm |
| d3 | M10 |
| C1 | 10.5mm |
| B | 14mm |
| h | 48mm |
| l1 | 28mm |
| l2 | 63mm |
| Max pivot angle | 35° |
| Max static tensile strength (short term) | 2500 N |
| Max static tensile strength (long term) | 1250 N |
| Max radial load (short term) | 300 N |
| Max radial load (long term) | 150 N |
| Min tread depth | 20mm |
| Max torque strength outside thread | 5 Nm |
| Max torque through ball (standard) | 20 Nm |
| Max torque through ball (MH) | 50 Nm |
| Weight | 11.2 g |
