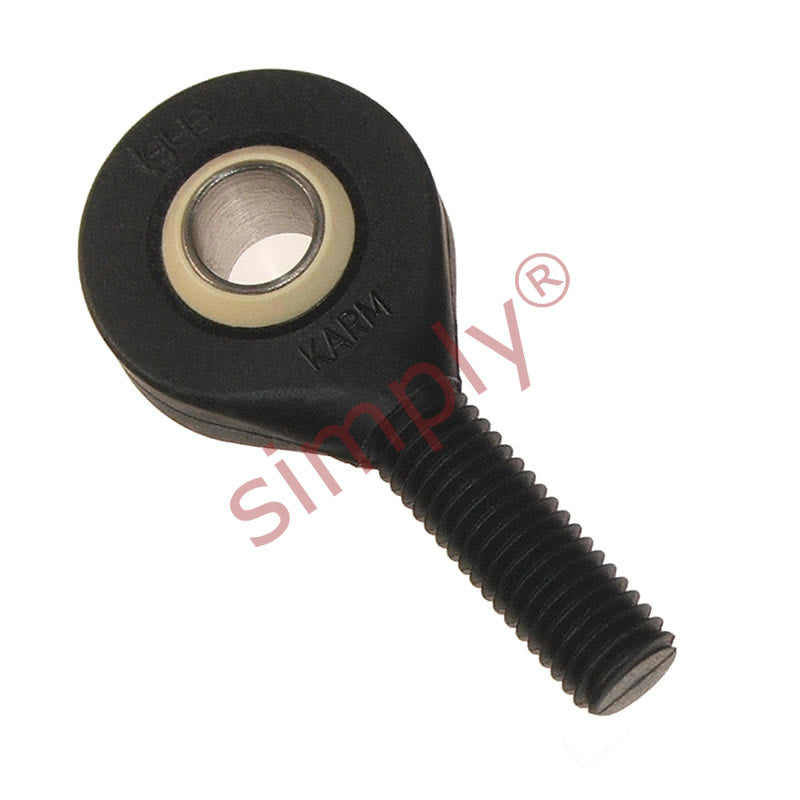

• igubal KARM05MH Right Hand Male Plastic Rod End 5mm Bore M5 Thread with Metal Insert
1 1

SKU: KARM-05.MH

igubal KARM05MH Right Hand Male Plastic Rod End 5mm Bore M5 Thread with Metal Insert

igubal KARM05MH Right Hand Male Plastic Rod End 5mm Bore M5 Thread with Metal Insert
$16.87 ex VAT
$16.87 ex VAT
Sale Sold out

In stock

Price Break
4+ $8.00
9+ $7.55
19+ $7.46
29+ $7.37
39+ $7.28
49+ $7.19
59+ $6.74
69+ $6.65
79+ $6.56
89+ $6.47
99+ $6.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M5
C1 6mm
B 8mm
h 33mm
l1 19mm
l2 42mm
Max pivot angle 30°
Max static tensile strength (short term) 800 N
Max static tensile strength (long term) 400 N
Max radial load (short term) 80 N
Max radial load (long term) 40 N
Min thread depth 13mm
Max torque strength outside thread 0.4 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 2.7 g
